5 Sets of Sensor Alarm Magnetic Reed Switch MC-38B NC and NO Embedded Magnetic Gap Switch White for Door and Window Sensors for Home Security
5 Sets of Sensor Alarm Magnetic Reed Switch MC-38B NC and NO Embedded Magnetic Gap Switch White for Door and Window Sensors for Home Security
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per

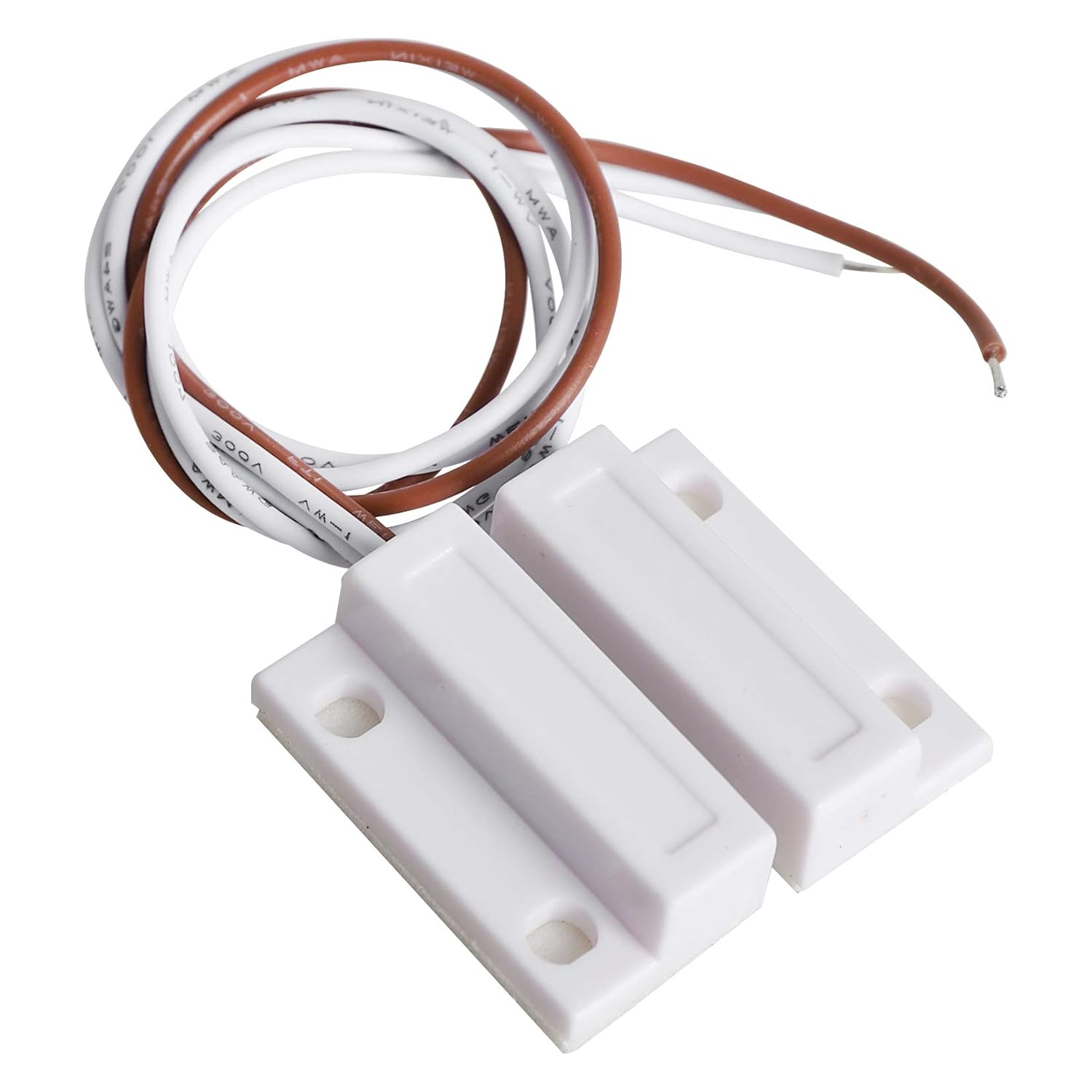

product description: Surface-mounted magnetic contact, ideal wooden door or window use
Electric currency:3W/100VDC/0.3A
Housing: ABS
Color: white
Gap: ≥15mm

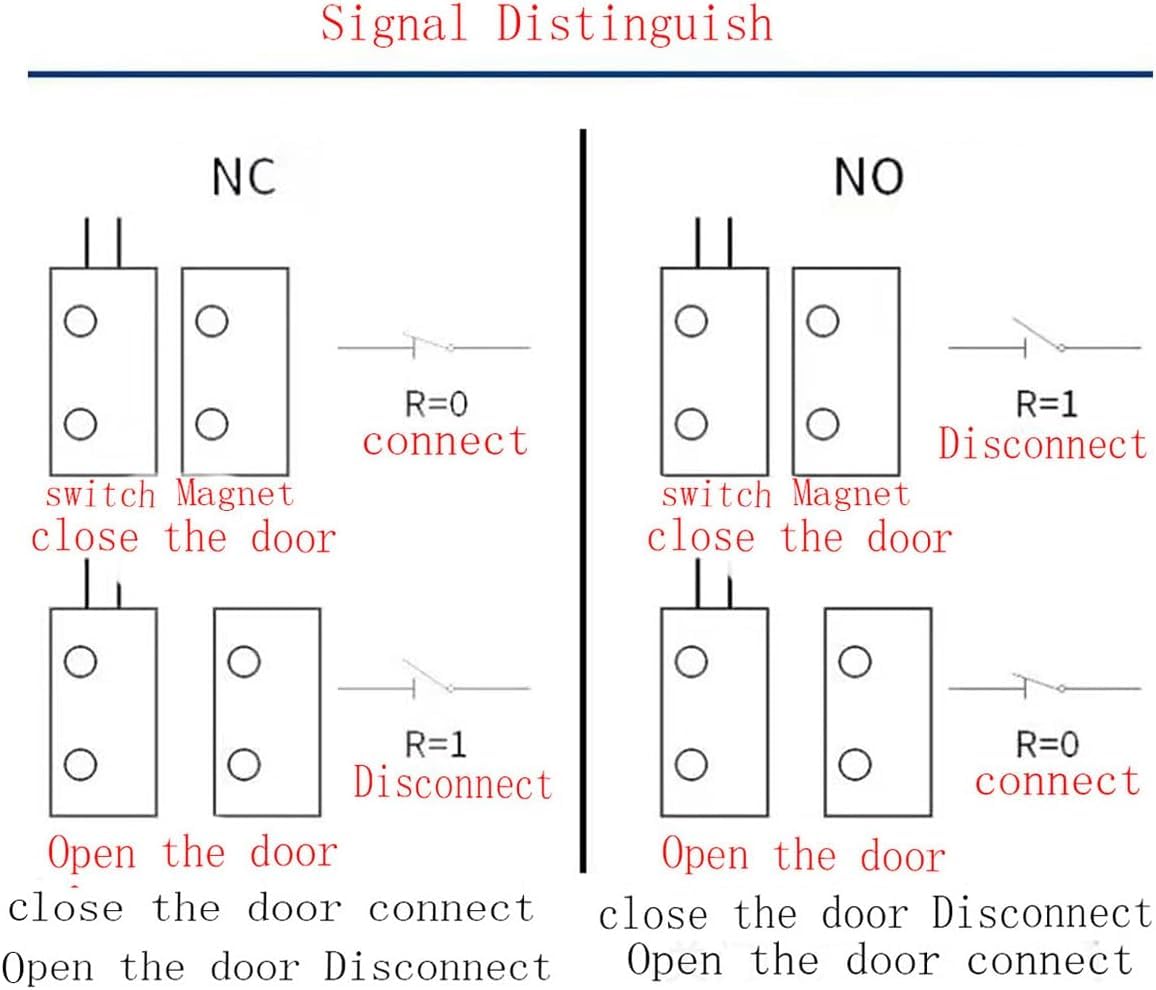

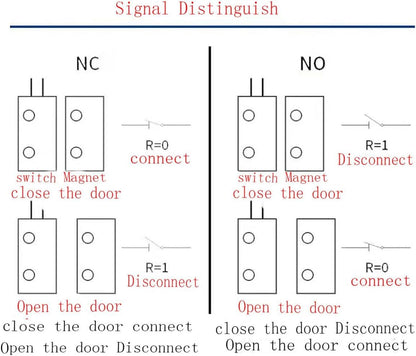

Output: change over, NC and NO, usually for NO use

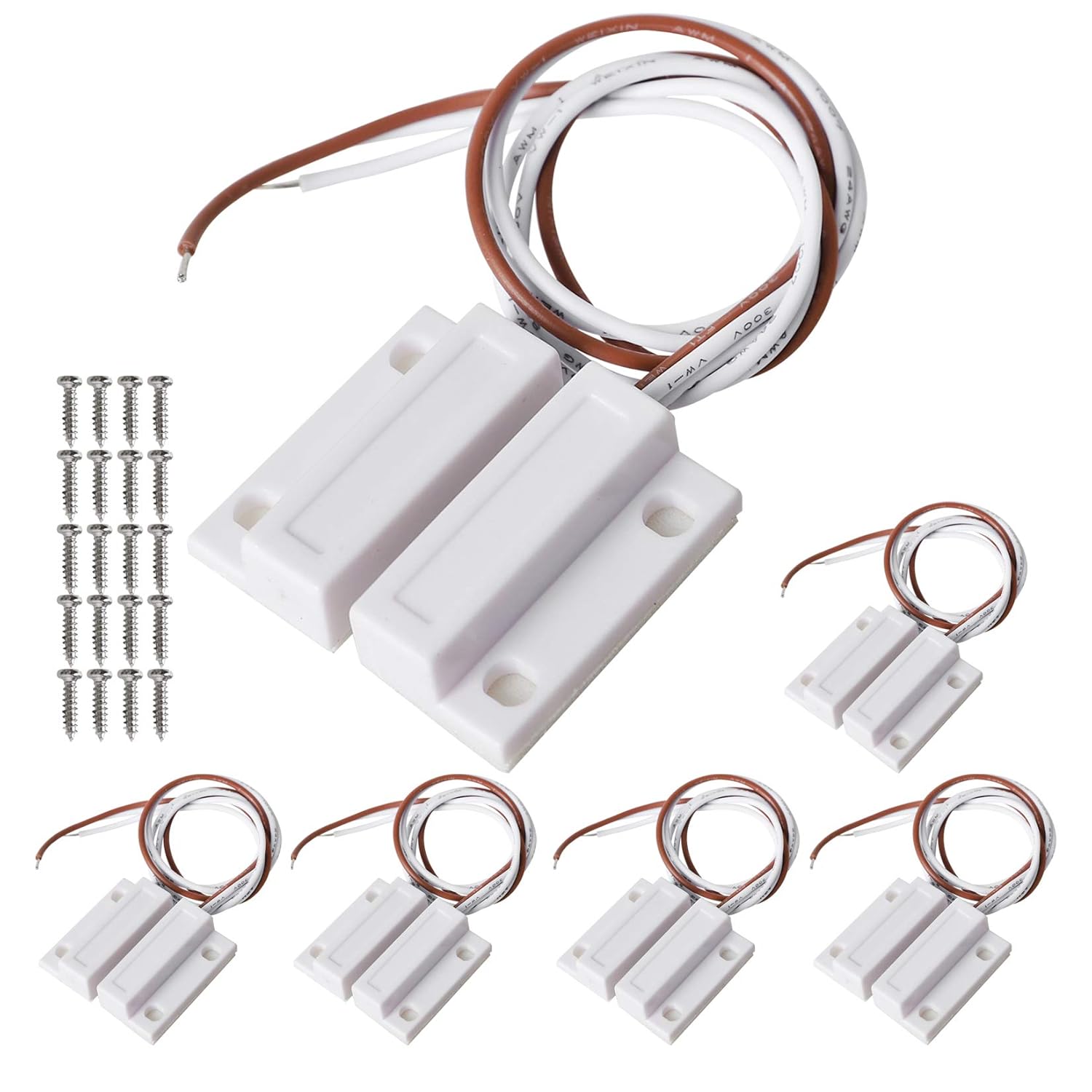

Packaging: Inner packing: 5 sets/PE
Product Overview
- Operation Mode: Electric
- Current Rating: 0.3 Amps
- Operating Voltage: 100 Volts
- Contact Type: Nc - No
- Connector Type: Dry Contact
- Brand: BNYZWOT
- Terminal: Screw
- Circuit Type: 2-way
- Mounting Type: Surface Mount
- Actuator Type: Reed Switch
Product Features
- Embedded magnetic contact, ideal wooden door or window use
- electric currency(max)3W or 100VDC or 0.3A(not exceed 0.5A)
- Output: change over, NC and NO, usually for NO use
- Gap:≥15mm,cable: 26.5cm
- dimension:27.5mm*7.5mm
