HH52P AC 12V Coil 8 Pin 5A DPDT LED Indicator Electromagnetic Power Relay, with Base, with DIN Rail Slotted Aluminum 2pcs
HH52P AC 12V Coil 8 Pin 5A DPDT LED Indicator Electromagnetic Power Relay, with Base, with DIN Rail Slotted Aluminum 2pcs
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
This general relay designed with a terminal socket, plays the role as a protector or a circuit switch. It can protect your electric equipment's very well. electrical relay is for general purpose. ,Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
Product Overview
- Connector Type: Screw
- Contact Type: Dpdt
- Current Rating: 5 Amps
- Mounting Type: din_rail
- Brand: BNYZWOT
Product Features
- Product Name:Electromagnetic Power Relay; Relay Model : HH52P; Type : DPDT(2NO 2NC); Number of Terminals : 8 ; Socket Model : PYF08A-E
- Mount Rail Type : 35mm DIN Rail; DIN Rail length : 100mm/4"(L)
- Coil Voltage:AC 12V; Contact Capacity: 5A 250VAC/5A 28VDC;
- Overall size(approx. ): 75 x 22 x 66mm/3" x 0. 8" x 2. 6"(L*w*h)

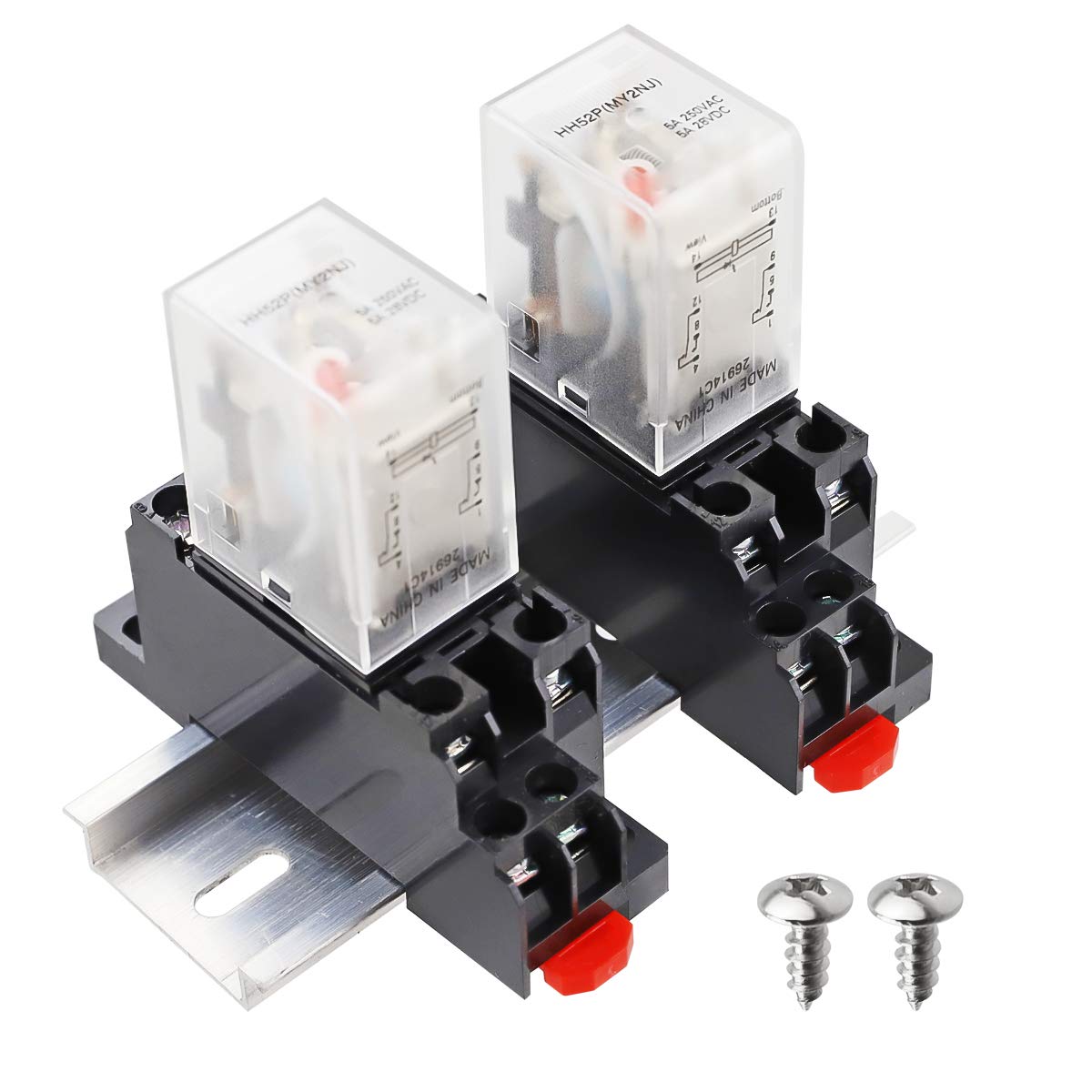

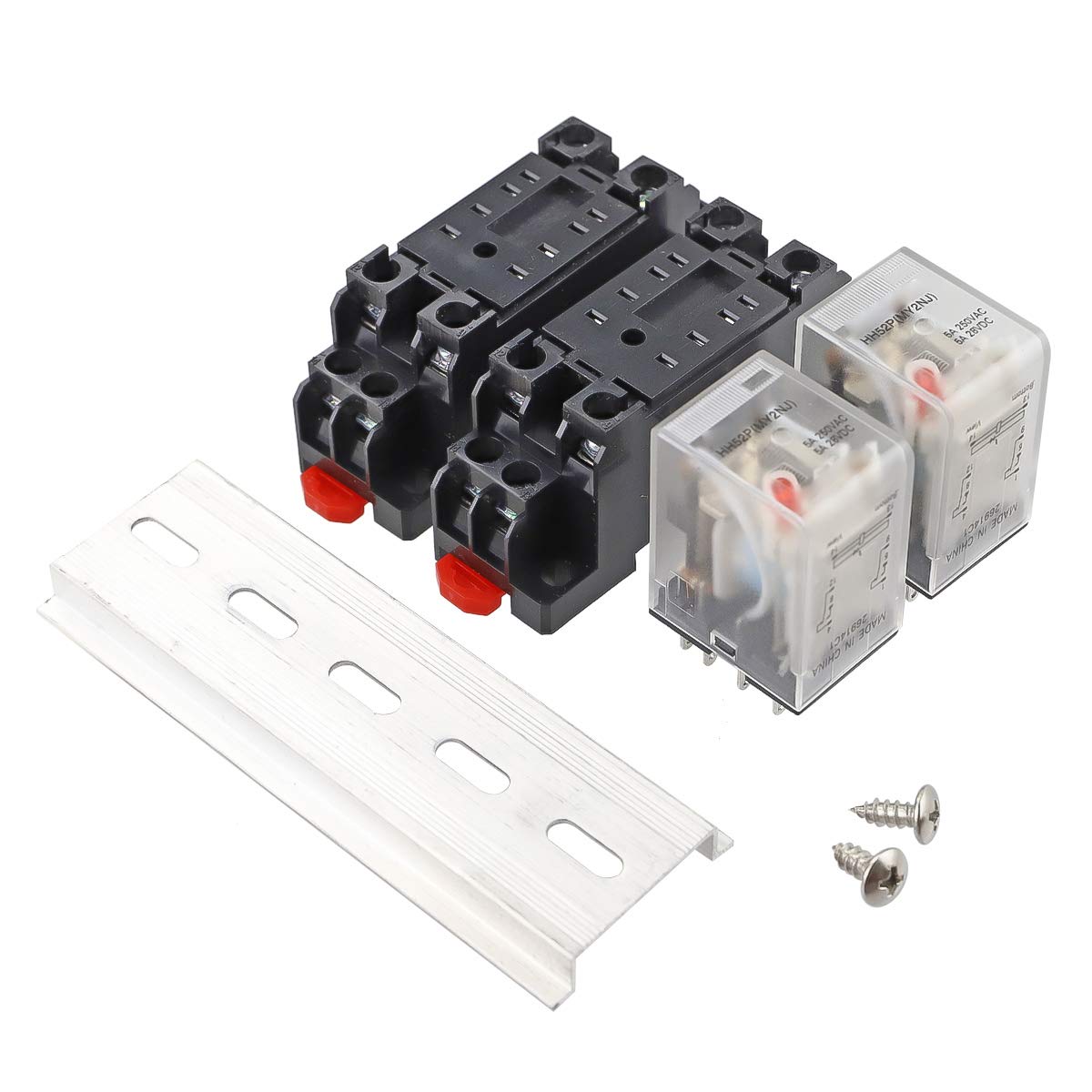

- Package Content : 2 x Power Relay + 2 x Socket + 1 x Rail Slotted Aluminum + 2 x Screw
