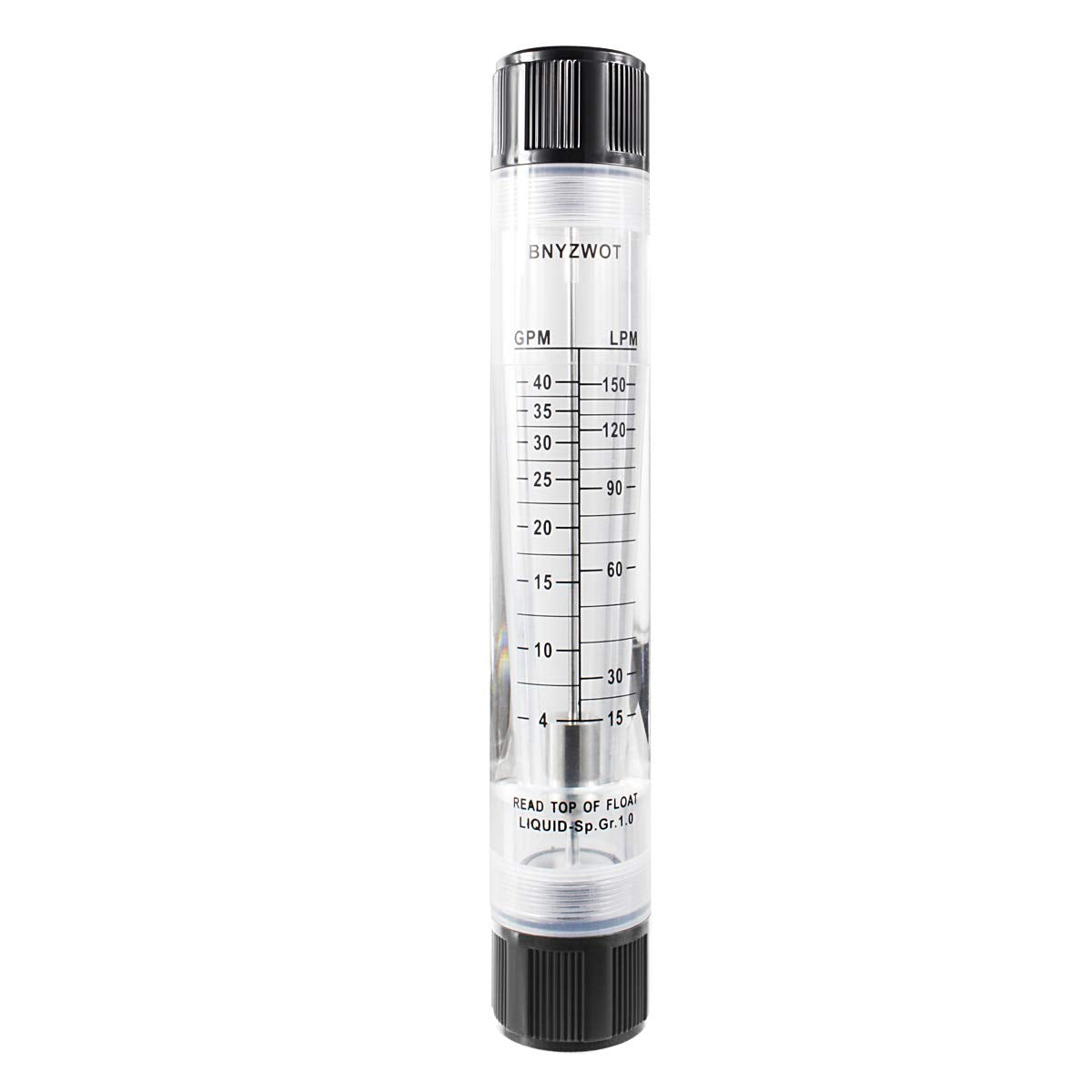

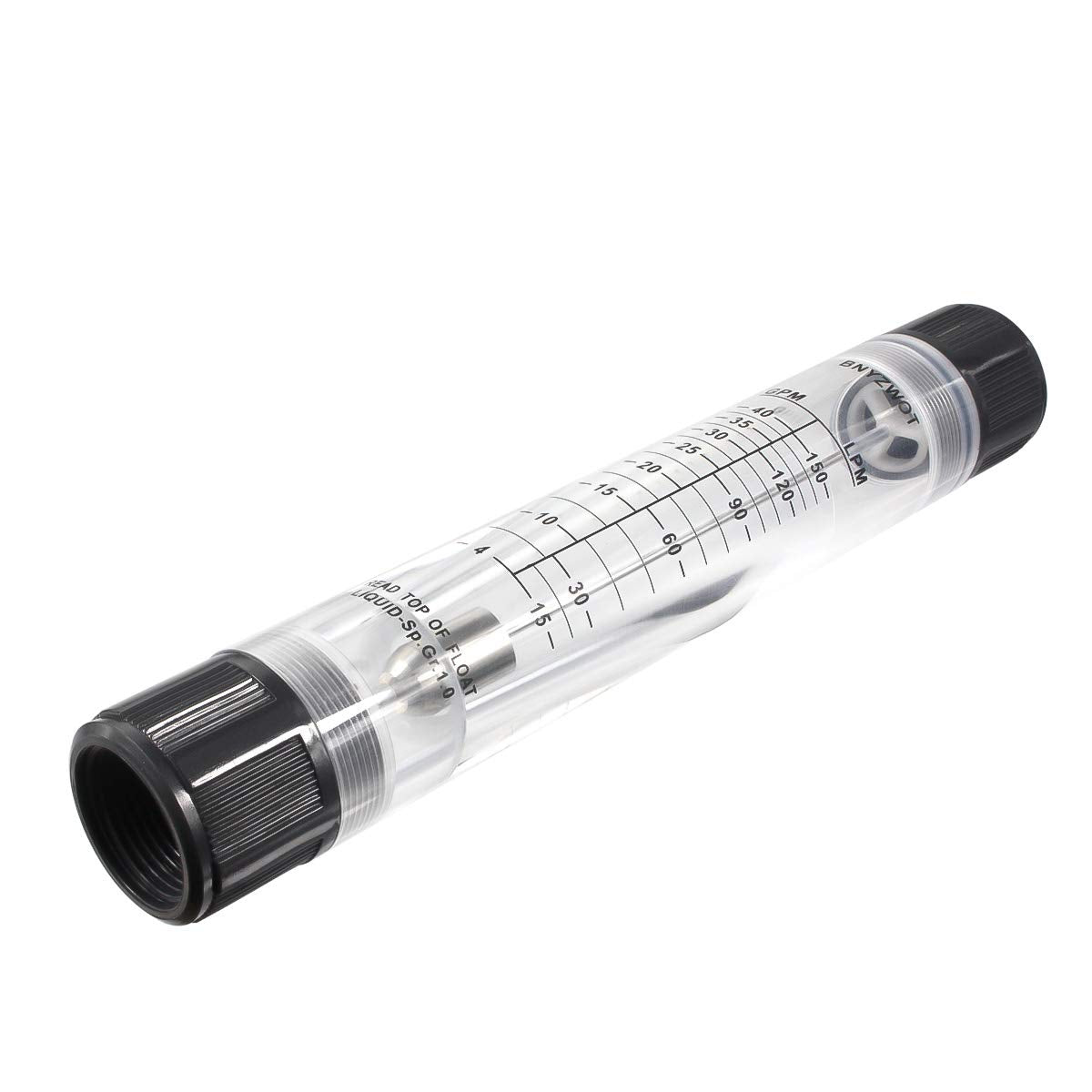

Inline Clear Acrylic Water Flowmeter 1PT Dia Threads G-25 4-40 GPM 15-150 LPM
Inline Clear Acrylic Water Flowmeter 1PT Dia Threads G-25 4-40 GPM 15-150 LPM
Flow unit:
Gpm = gallons / minute
Lpm=liter/minute
1 gallon (US) = 3.785 liters
Length: 278mm/10.94”

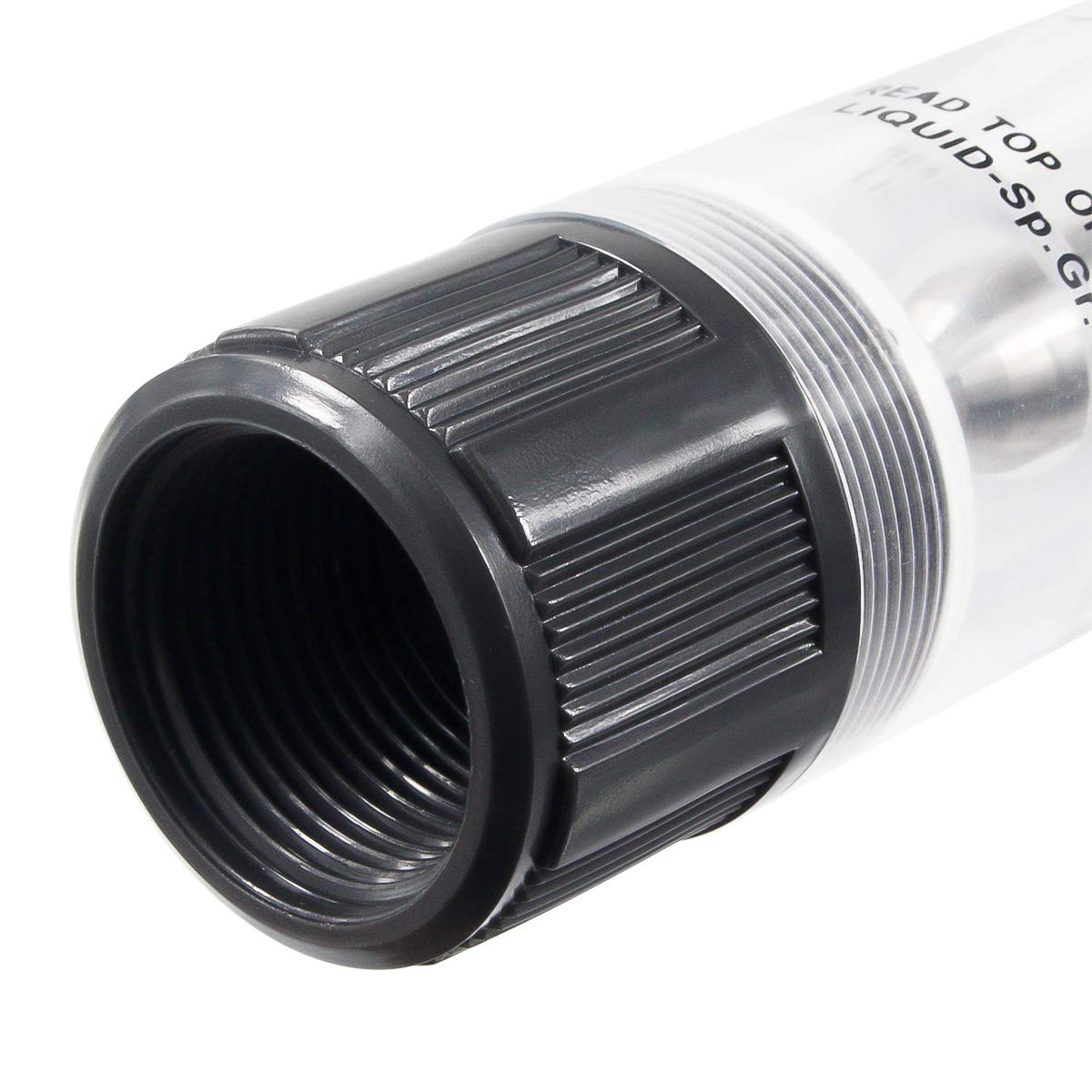

Connection method: G1 thread
Installation method: vertical installation
Product material: nozzle material PVC, float and guide material 304 stainless steel, O-ring material silicone rubber
Batnawn-G series plexiglass pipeline flowmeter is mainly used in water treatment and environmental protection engineering. It can also be used in chemical, petroleum, light industry, medicine, fertilizer, food, paper and scientific research departments to measure liquid single-phase non-pulsation. flow. The product housing and measuring cone are precision machined from transparent plastic, featuring high transparency, intuitive reading and easy installation.
Maximum temperature; below 60 degrees Celsius
Product Features
- Product Name : Water Flowmeter;Material : Grass, Stainless Steel, Plastic
- Color : Clear, Gray;Overall Size : 43 x 278mm / 1.69" x 10.94" (D*H)
- Scale Range : GPM: 4-40LPM: 15-150;Working Presure : 1MPa
- Working Presure: 0.6MPa, water flowmeter temperature range below 60 degrees Celsius
- Female Thread Dia. : 1 PT;Net Weight : 144g ，Package Content : 1 x Water Flowmeter
