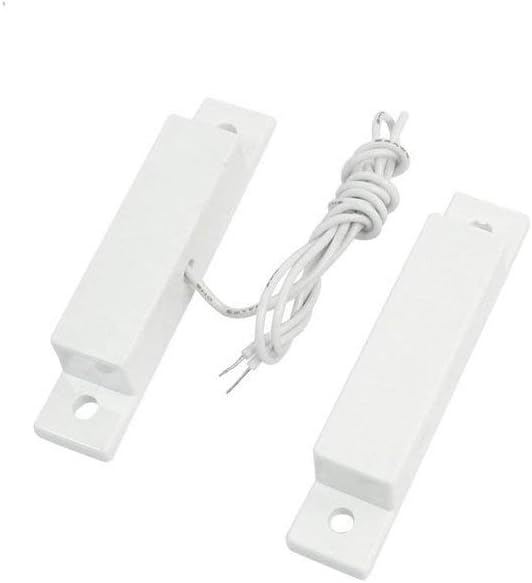

MC-32 Wired Electromagnetic Door and Window Contact Reed Switch Alarm Security System Anti NC Normally Closed Door Sensor for Door and Window Sensor - (10 Sets)
MC-32 Wired Electromagnetic Door and Window Contact Reed Switch Alarm Security System Anti NC Normally Closed Door Sensor for Door and Window Sensor - (10 Sets)
Product description:
Model: MC-32.
Feature:
White color make home great and beautiful. Anti-fire ABS material.
Actuation Distance: 15-25mm. Alarm door sensor widely used in work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
Specification:
Material: ABS.
Max. Power: 10W.
Max. Current: 0.5A.
Contact Type: NC
Working Voltage: DC100V.
Wire Type: 1007UL#24AWG.
Dimension
Actuation Distance: 15-25mm.
Hole Diameter: 4mm/0.16 inch.
Total Size: 64 x 19 x 13mm/2.52 x 0.75 x 0.51 inch.(lL*W*H)
Package Included : 10 Sets x MC-32 Magnetic Reed Switch.
Warm Tips
Do not place the switch in water or coolant.
The load voltage and the maximum load current must not exceed the maximum allowable amount of the switch,Affect its service life.
Risk-Free Guarantee :100% SATISFACTION GUARANTEED: If you don't absolutely love them let us know and we will refund your purchase price NO QUESTIONS ASKED!
We are so confident you will love our products. This is our confidence in product quality and commitment to customers
Product Overview
- Brand: BNYZWOT
- Color: White
- Power Source: dc
- Connectivity Technology: Wired
- Installation Type: Screw-In
Product Features
- Package Included : 10 Sets x MC-32 Magnetic Reed Switch.(Mounting screws are includes).
- Function : The reed switch is an electrical switch operated by an applied magnetic field. Designed for use with alarm systems. Great for use in family and factory window, door. etc.
- Install Distance：Gap between 2 pieces more than 15mm, less than 25mm.White color make home great and beautiful. Anti-fire ABS material.
- Reed Switch：Important : When the magnet is near it makes connectivity, when the magnet is removed connectivity is broken.Wired magnetic door/windows contact can be added to wireless/wired Alarm Systems.(some wireless system has wired zones)
- Switch Type : NO means normally open: when the magnet separate, the circuit is conductive( light on ); when the magnet together, the circuit is not conductive ( light off ), NC means normally closed: when the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
Product Information
| Brand | BNYZWOT |
| Color | White |
| Power Source | dc |
| Connectivity Technology | Wired |
| Installation Type | Screw-In |
| Alert Type | Motion |
| Voltage | 100 Volts |
| UPC | 793513385992 |
| Manufacturer | BNYZWOT |
| Part Number | A19 |
| Item Weight | 7.2 ounces |
| Package Dimensions | 6.4 x 6 x 0.8 inches |
| Item model number | A19 |
| Material | Abs |
| Mounting Type | Door |
| Batteries Required? | No |
| ASIN | B083SQ7W5S |
| Customer Reviews | |
| Date First Available | January 13, 2020 |
