MC-34A NC (Normally Closed) Recessed Window Door Contact Sensor Alarm Magnetic Reed Switch White - (5 Sets)
MC-34A NC (Normally Closed) Recessed Window Door Contact Sensor Alarm Magnetic Reed Switch White - (5 Sets)
Features:
1. Work as an anti-theft alarm, ideal for metal door and window.
2. These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

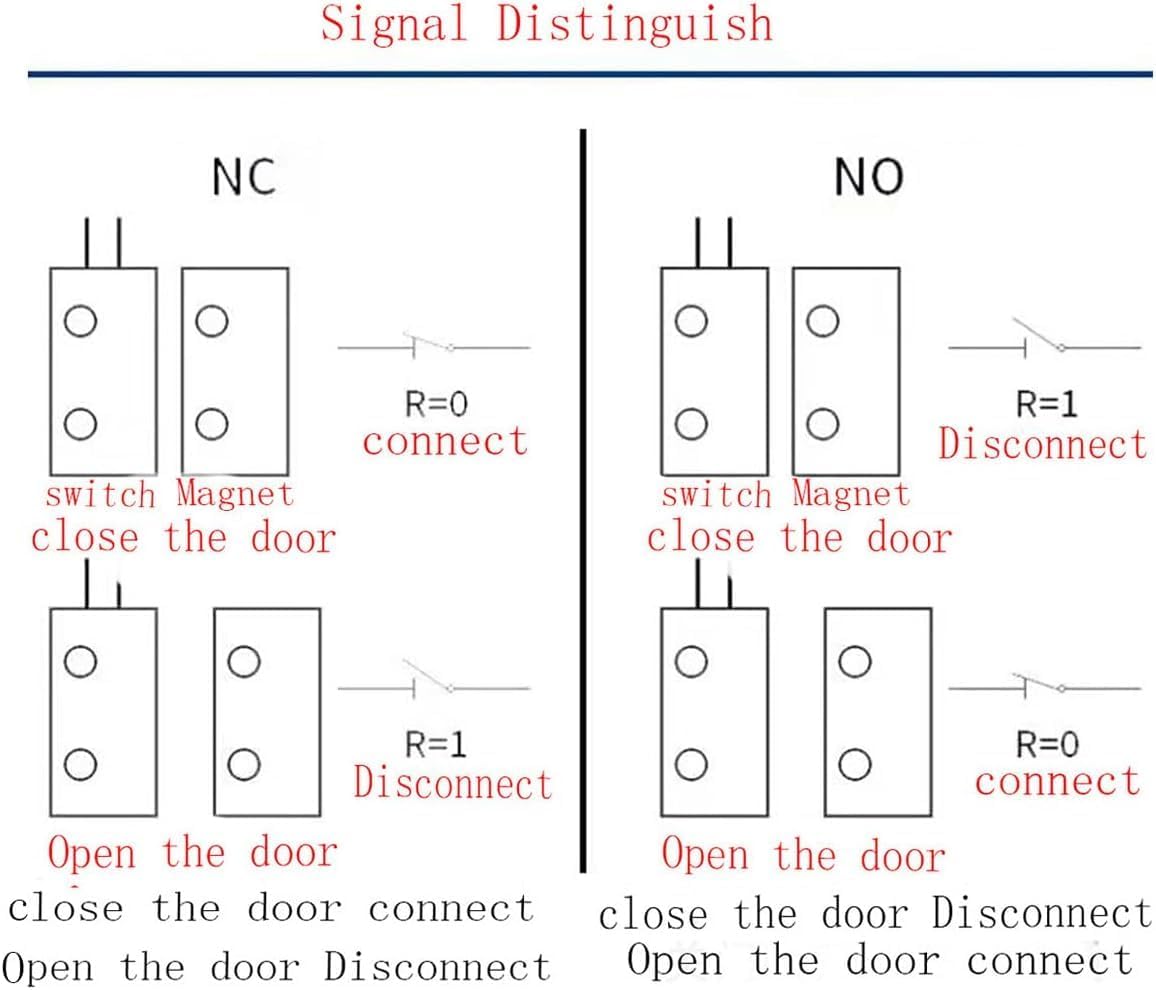

3. Nc means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).When make order,pls check carefully!
Specification:
1. Model: MC-34A
2. Max. Current: 0.3A
3. Color: White, Silver Tone
4. Max. Contact Power: 3W
5. Working Voltage: DC28V
6. Material: ABS (Housing), Metal
7. Max. Actuation Distance: 13mm
8. Cable Length(Each): 25cm / 9.8-inch
9. Contact Type: NC (Normally Closed)
10. Product Name: Magnetic Door Switch
11. Size(Approx): 14 x 6.5mm, 11.7 x 5.7mm(H*W)

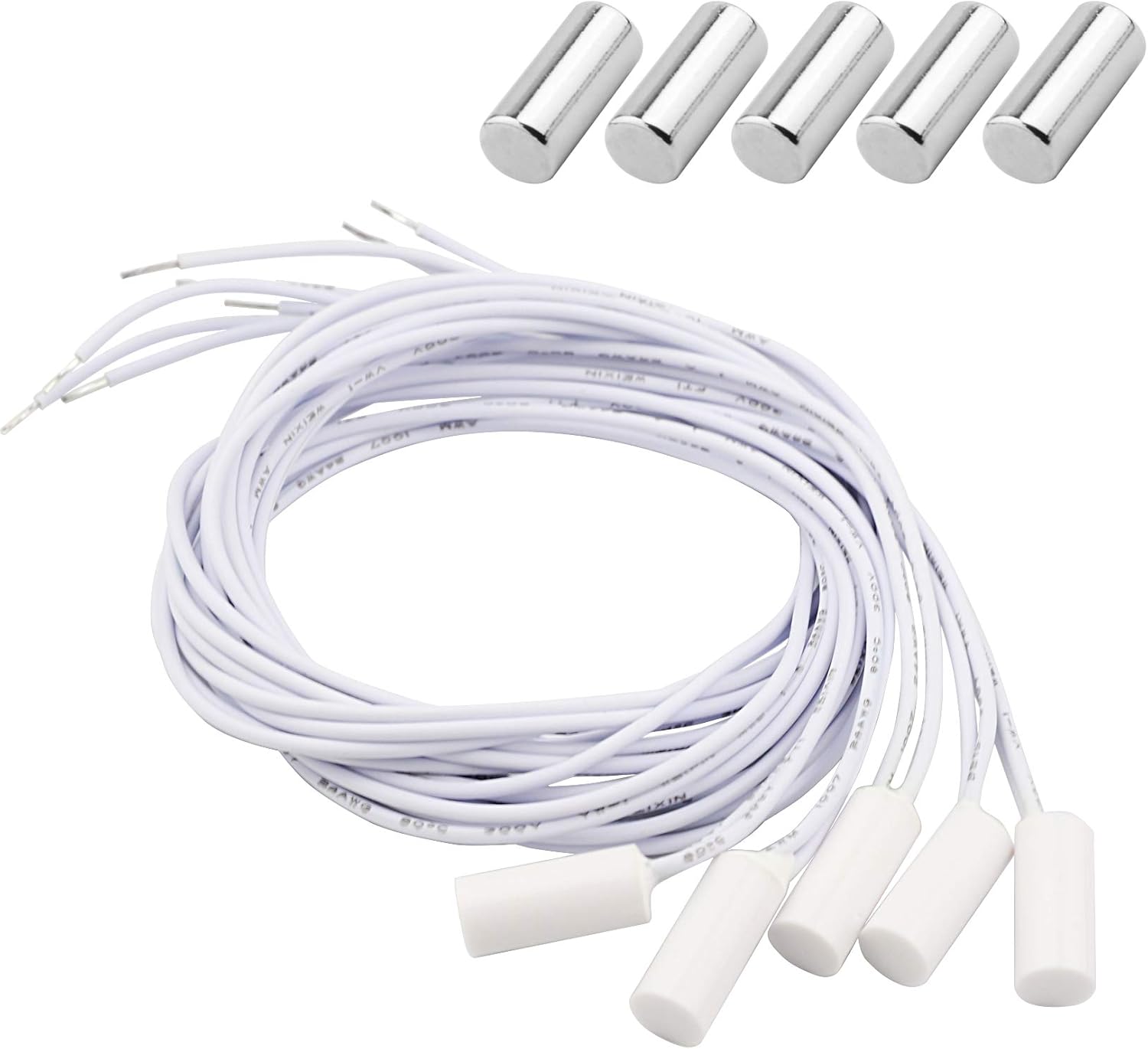

Package Included: 5 Sets x Magnetic Door Switches with cable
Note: Door magnetic induction can only provide a switch signal to the device, which can not directly load the power, nor directly connect the lamp!
Product Overview
- Color: White
- Brand: BNYZWOT
- Power Source: Corded Electric
- Product Dimensions: 0.55"L x 0.26"W x 0.55"H
- Voltage: 100 Volts
Product Features
- Will make Sense Door Closer at Roughly 10-15mm.
- Work as an anti-theft alarm, ideal for metal door and window.
- White recessed door contacts NC security alarm window sensors with magnetic reed switch and lead wire.
- Max. Current: 0.3A; Max. Contact Power: 3W; Working Voltage: DC28V; Contact Type: NC (Normally Closed).
- Nc means Normally Closed: When the magnet together, the circuit is conductive( light on ); When the magnet separate, the circuit is not conductive ( light off ) .
Product Information
| Control Method | App |
| Mounting Type | Door Mount |
| Sensor Technology | Magnetic Reed Switch |
| UPC | 795890082129 |
| Manufacturer | BNYZWOT |
| Part Number | A417 |
| Item Weight | 1.13 ounces |
| Product Dimensions | 0.55 x 0.26 x 0.55 inches |
| Country of Origin | China |
| Item model number | A417 |
| Material | Metal |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B089P28K5V |
| Customer Reviews | |
| Best Sellers Rank | |
| Date First Available | June 4, 2020 |
