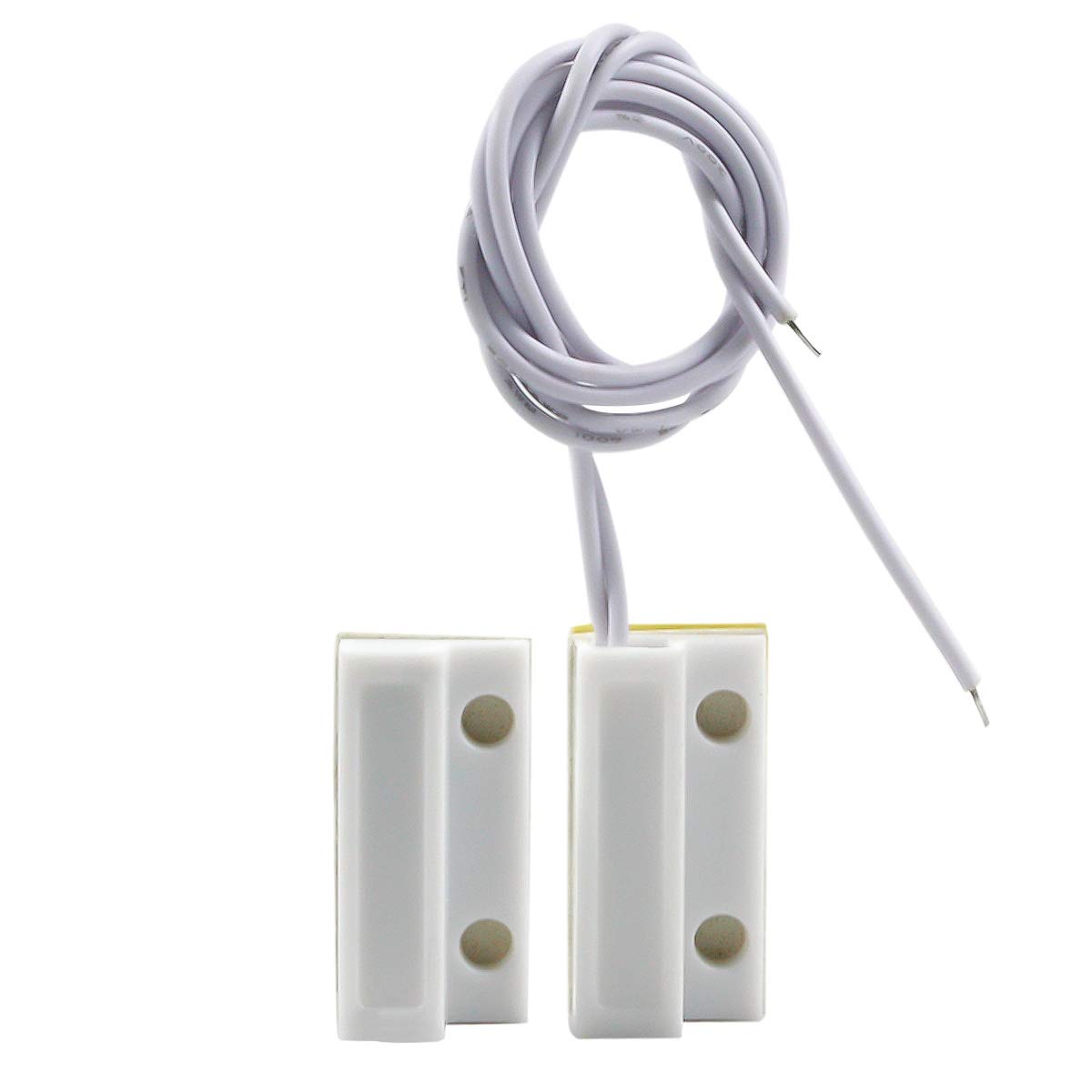

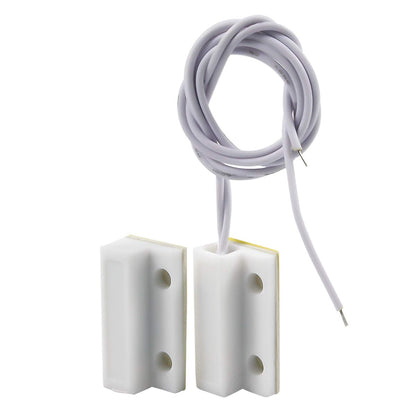

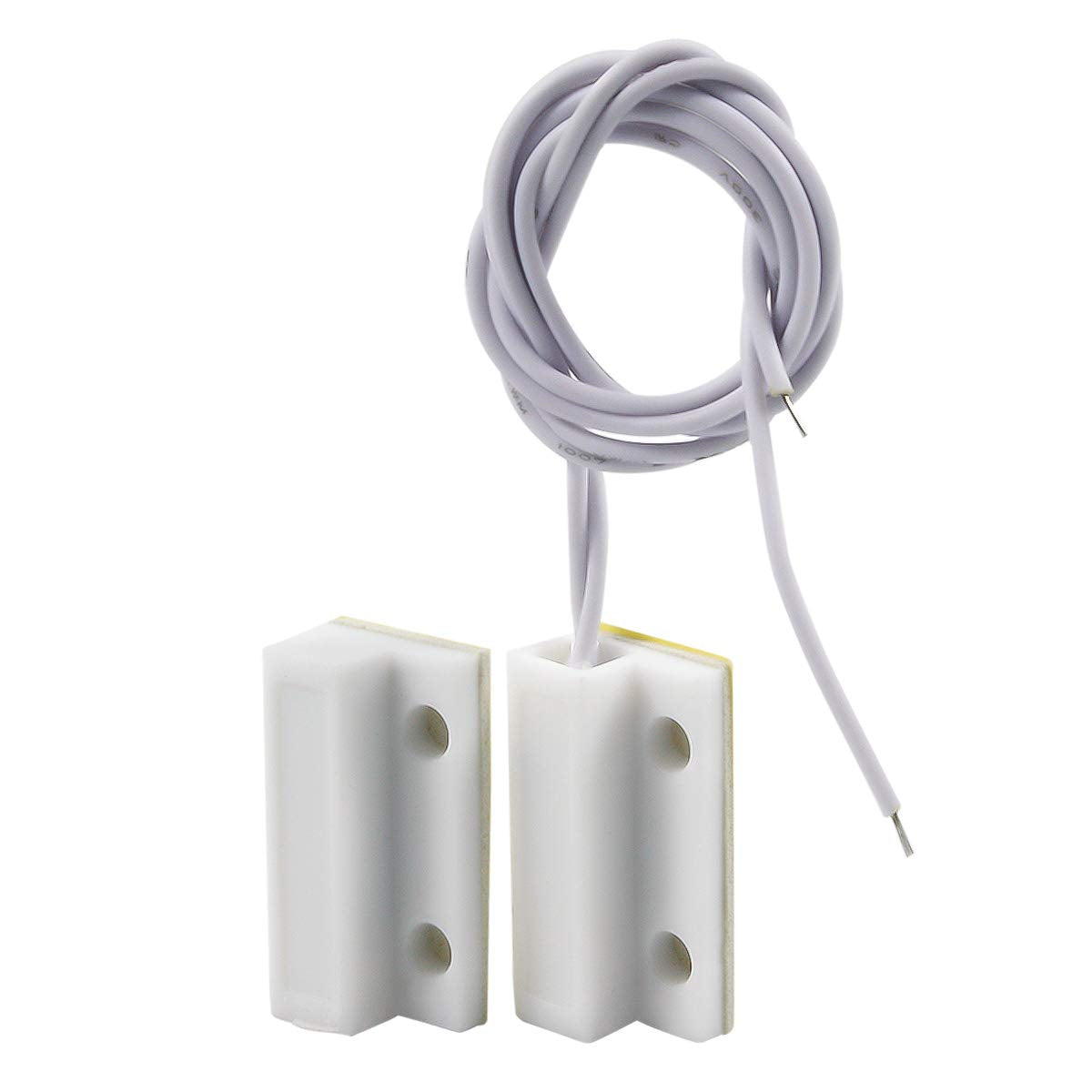

MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White 10 Pair
MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White 10 Pair
Regular price
$13.00 USD
Regular price
Sale price
$13.00 USD
Unit price
/
per

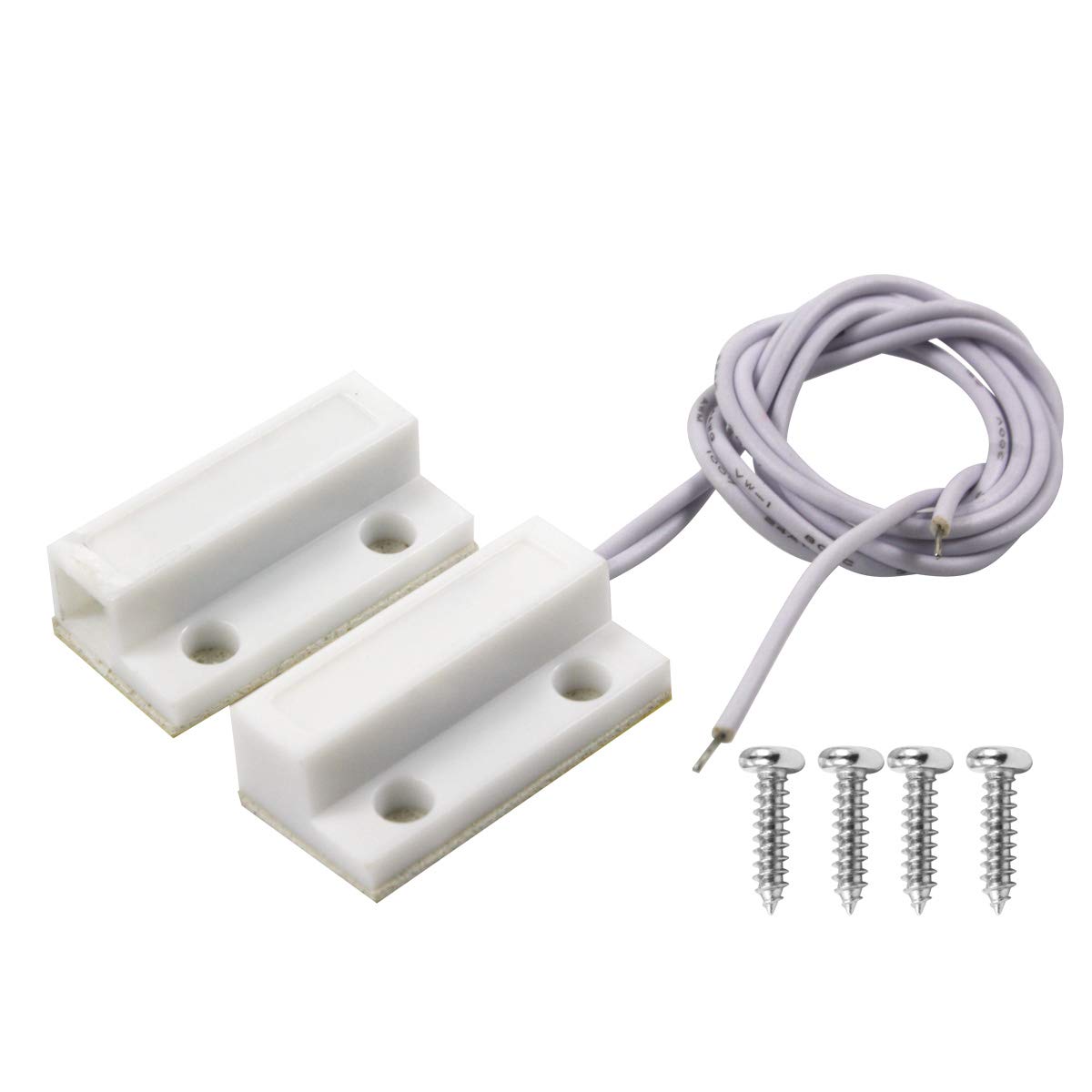

1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
3.Work as an anti-theft alarm, ideal for wood door and window.

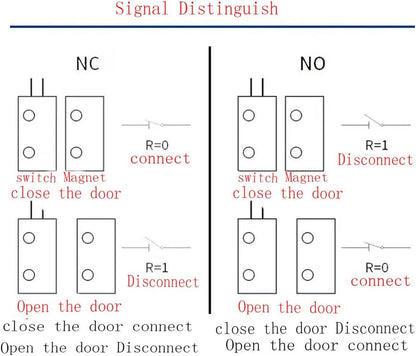

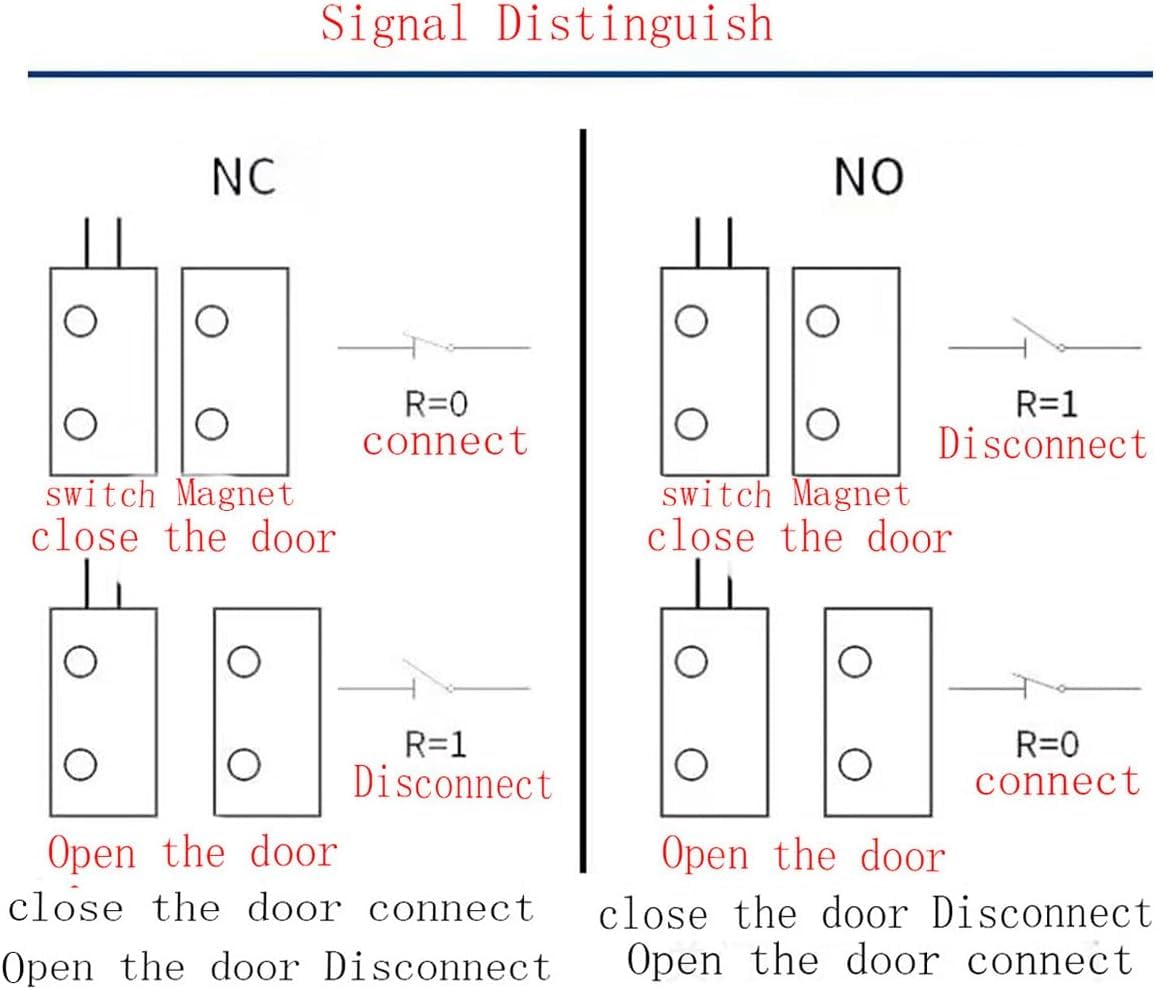

Nc: when the magnet is near, the circuit is on;
When the magnet moves away and the circuit is Off.
No: When the magnet is near, the circuit is off,
When the magnet moves away and the circuit is ON.
Product Overview
- Operation Mode: NC
- Current Rating: 0.5 Amps
- Operating Voltage: 100 Volts
- Contact Type: Normally Closed
- Connector Type: Screws
- Brand: BNYZWOT
- Circuit Type: single-pole single-throw, normally closed
- Mounting Type: Door,Surface
- Actuator Type: Hinge Lever
- Contact Material: Plastic
Product Features

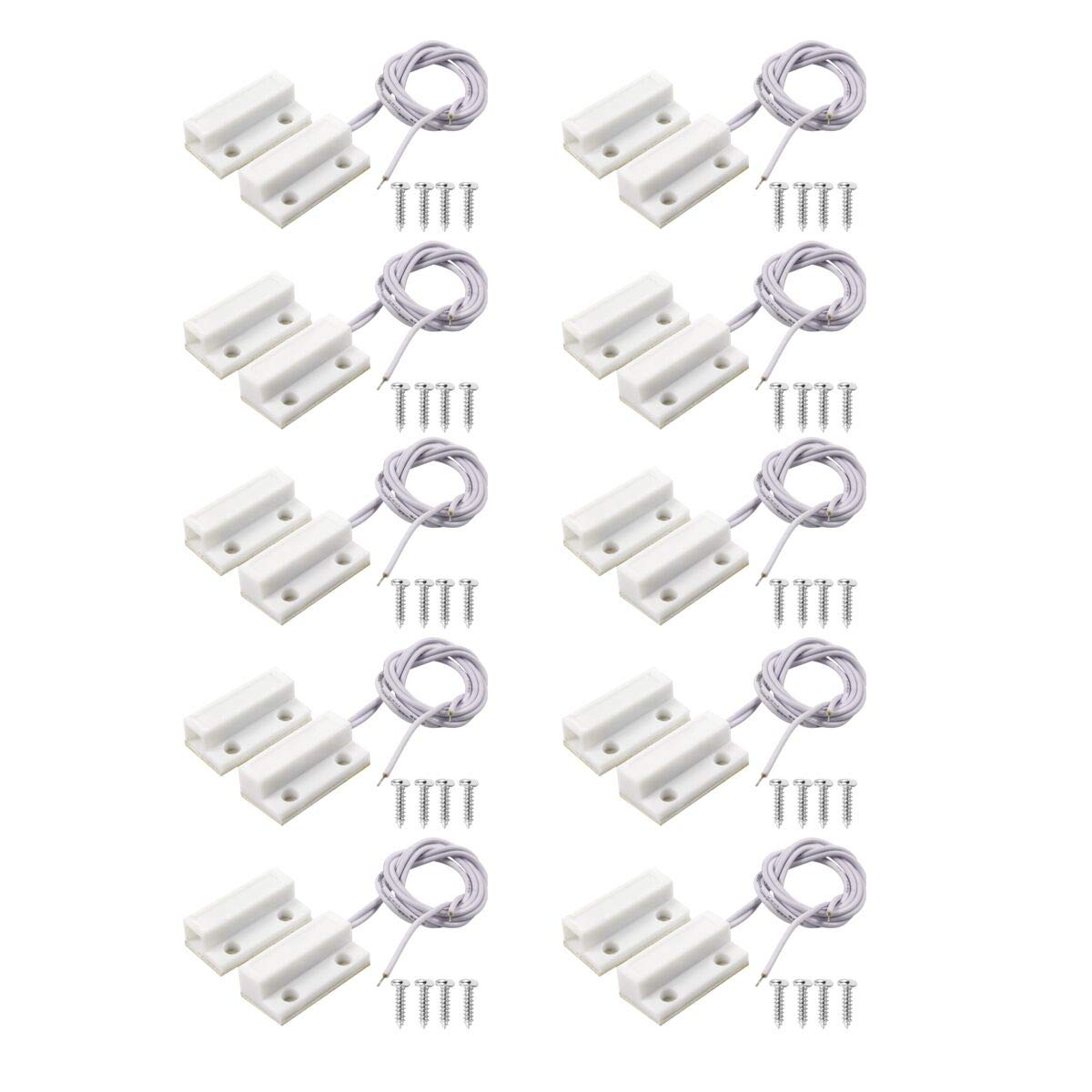

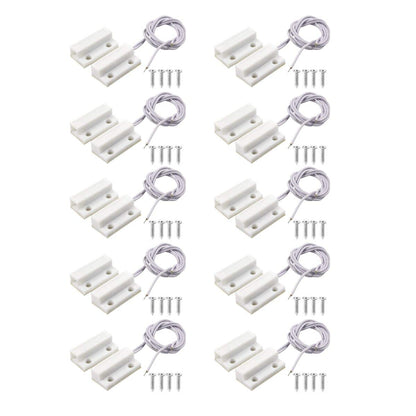

- Product Name: Magnetic Door Switch ;Model: MC-38;Package Content: 20 x Magnetic Door Switch, Some Install Parts;Normally closed: the magnet is close to conducting, and the magnet is open when leaving
- Contact Type: NC (Normally Closed) ;Actuation Distance: 18mm ± 6mm;
- Max. Current: 0.5A ;Max. Power: 10W; Working Voltage: DC0-100V
- Each Size(Approx): 27 x 14 x 7.8mm / 1.06-inch x 0.55-inch x 0.31-inch (L*W*H) ;Mounting Hole Diameter: 4mm/0.16-inch
- Cable Length(Each): 26cm / 10.24-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG Color: White Net Weight: 120g
