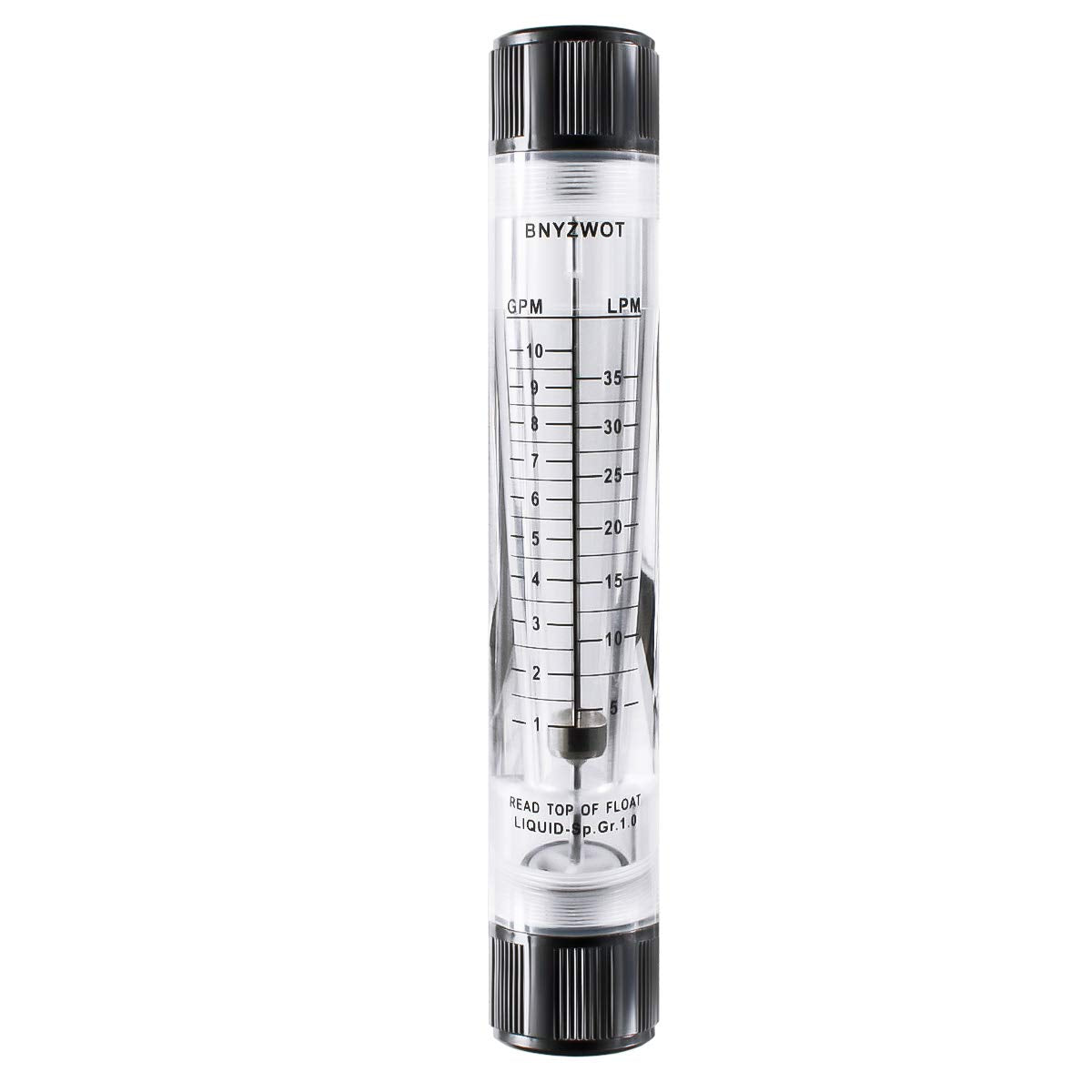

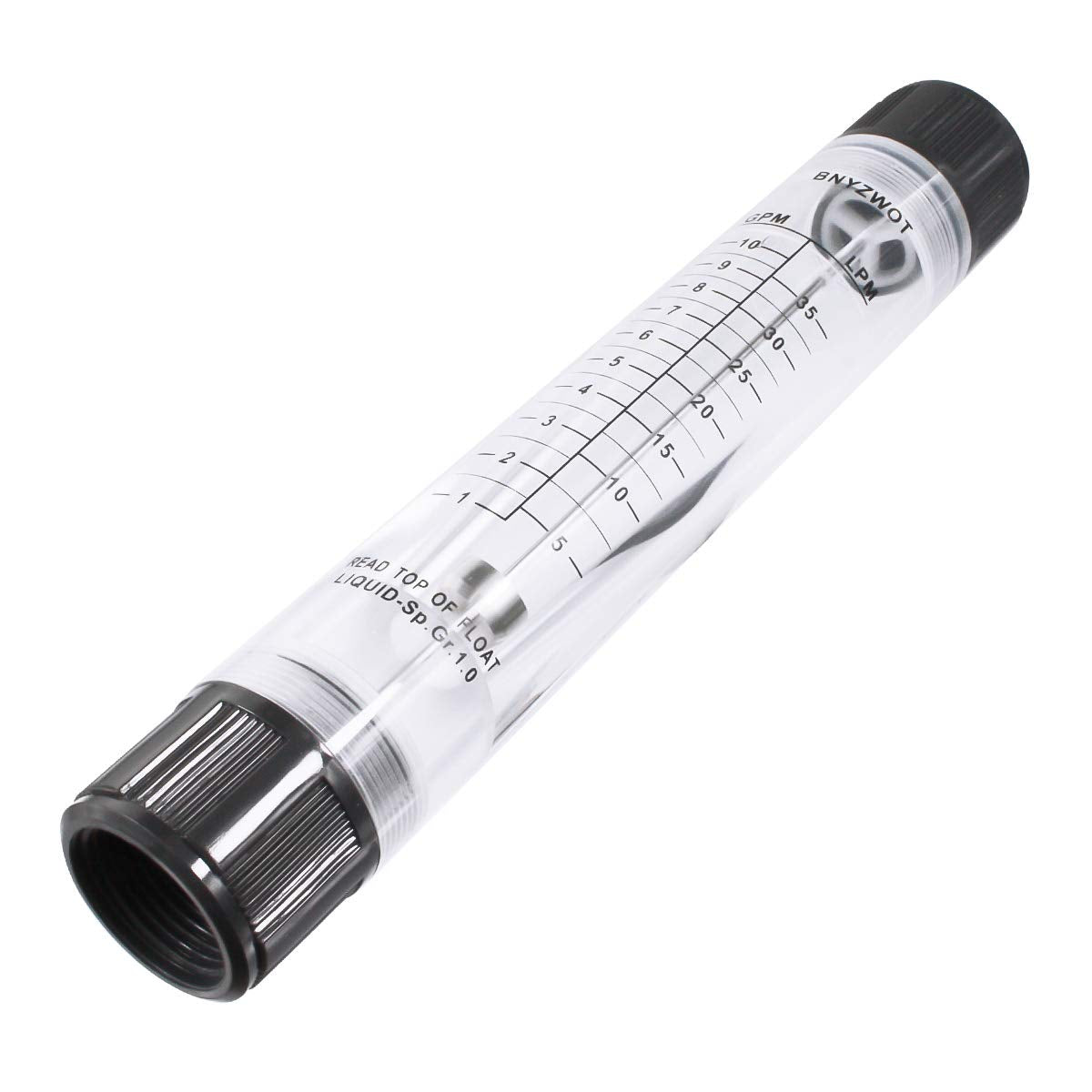

Pipe Liquid Flow Meter Plexiglass Flowmeter G1 Thread G-25 1-10GPM 5-35LPM
Pipe Liquid Flow Meter Plexiglass Flowmeter G1 Thread G-25 1-10GPM 5-35LPM
Flow unit:
Gpm = gallons / minute
Lpm=liter/minute
1 gallon (US) = 3.785 liters
Length: 278mm/10.94”

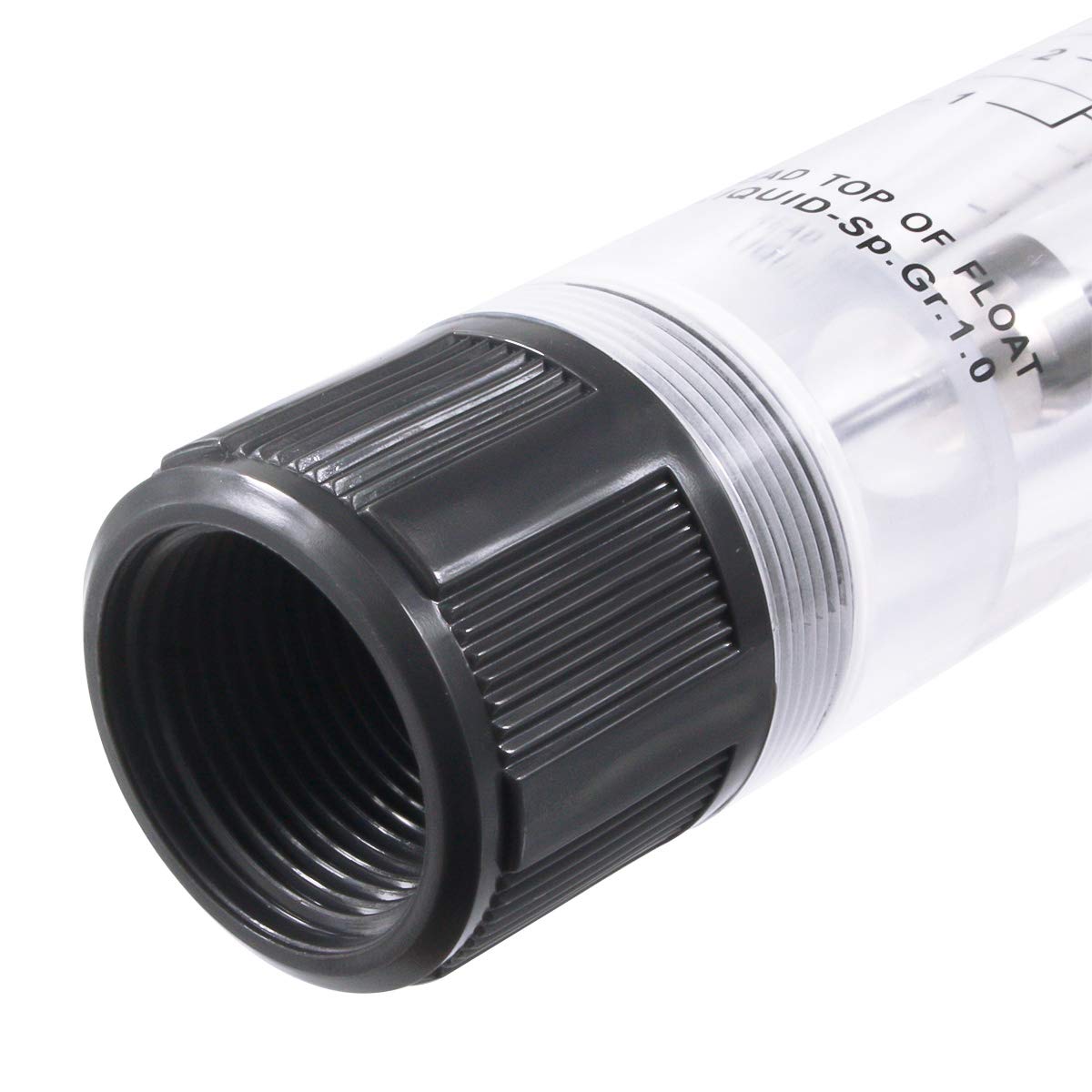

Connection method: G1 thread
Installation method: vertical installation
Product material: nozzle material PVC, float and guide material 304 stainless steel, O-ring material silicone rubber
Batnawn-G series plexiglass pipeline flowmeter is mainly used in water treatment and environmental protection engineering. It can also be used in chemical, petroleum, light industry, medicine, fertilizer, food, paper and scientific research departments to measure liquid single-phase non-pulsation. flow. The product housing and measuring cone are precision machined from transparent plastic, featuring high transparency, intuitive reading and easy installation.
Maximum temperature; below 60 degrees Celsius
Product Features
- Product Name: Water Flowmeter; Model No.:BNYZWOT G-25G;
- Material: Acrylic, Stainless Steel, Plastic;
- Overall Size : 45 x 278mm / 1.77" x 10.94" (D*H);
- Scale Range: GPM:1-10; LPM:5-35; Thread Port Size: ZG1
- Package content: 1PC x water flowmeter
