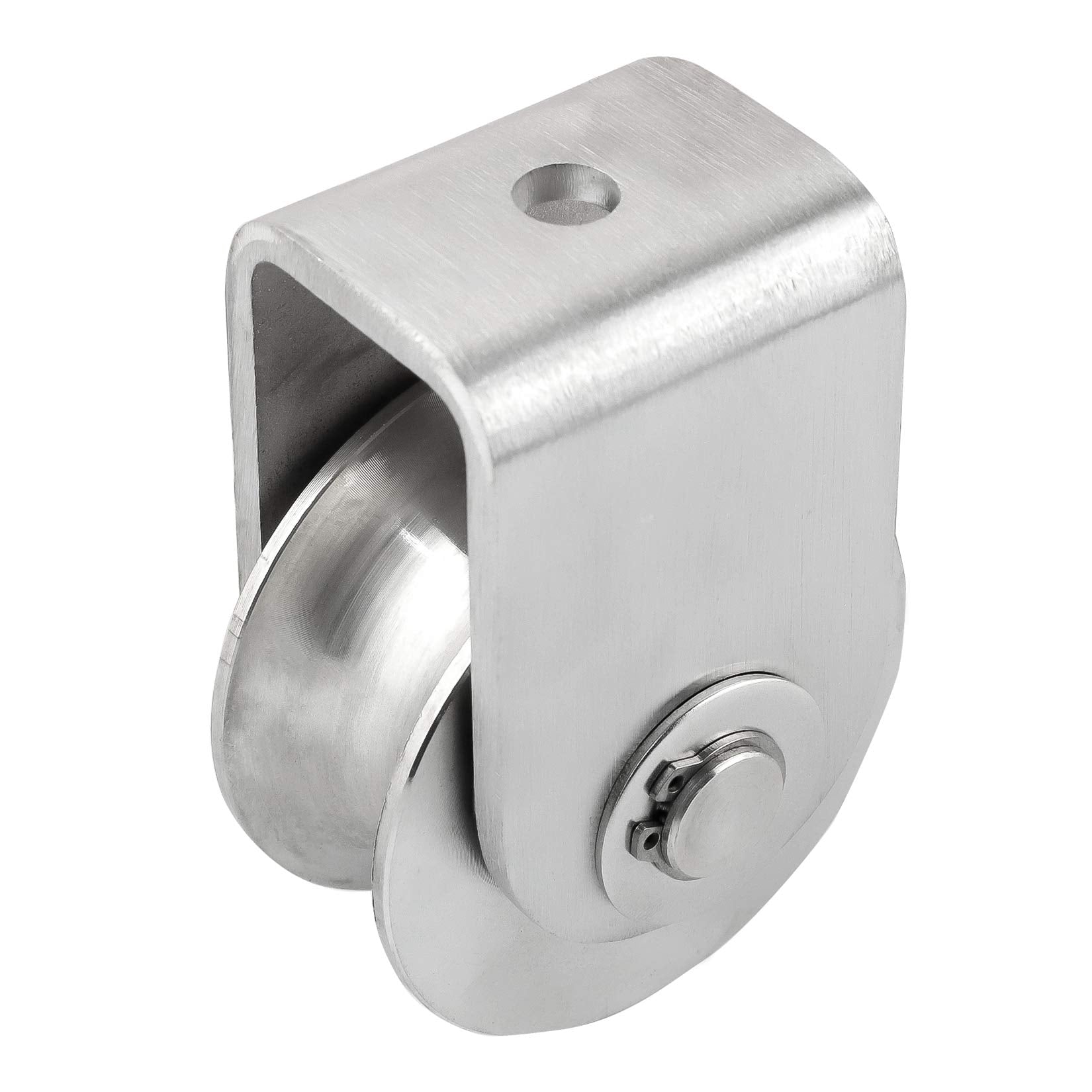

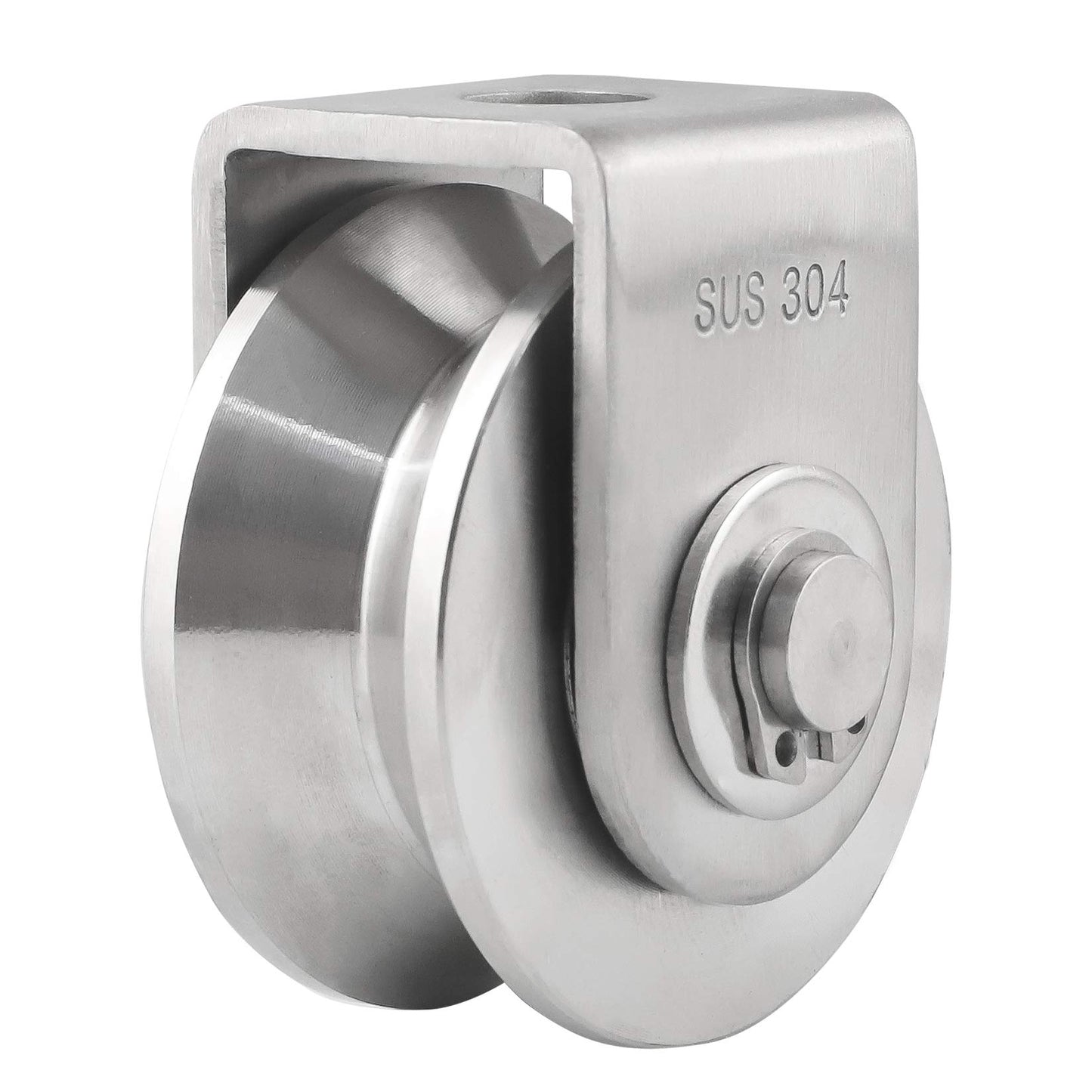

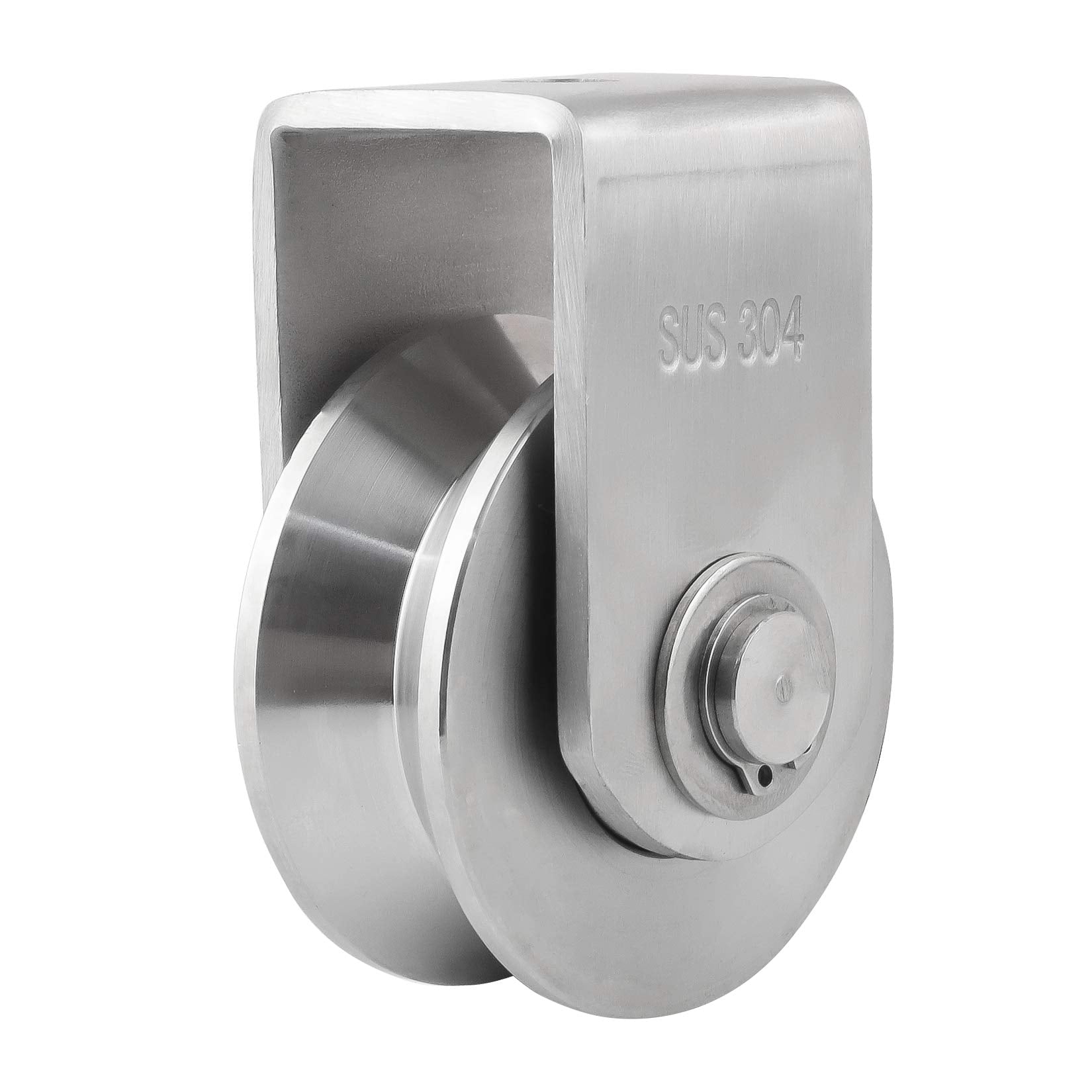

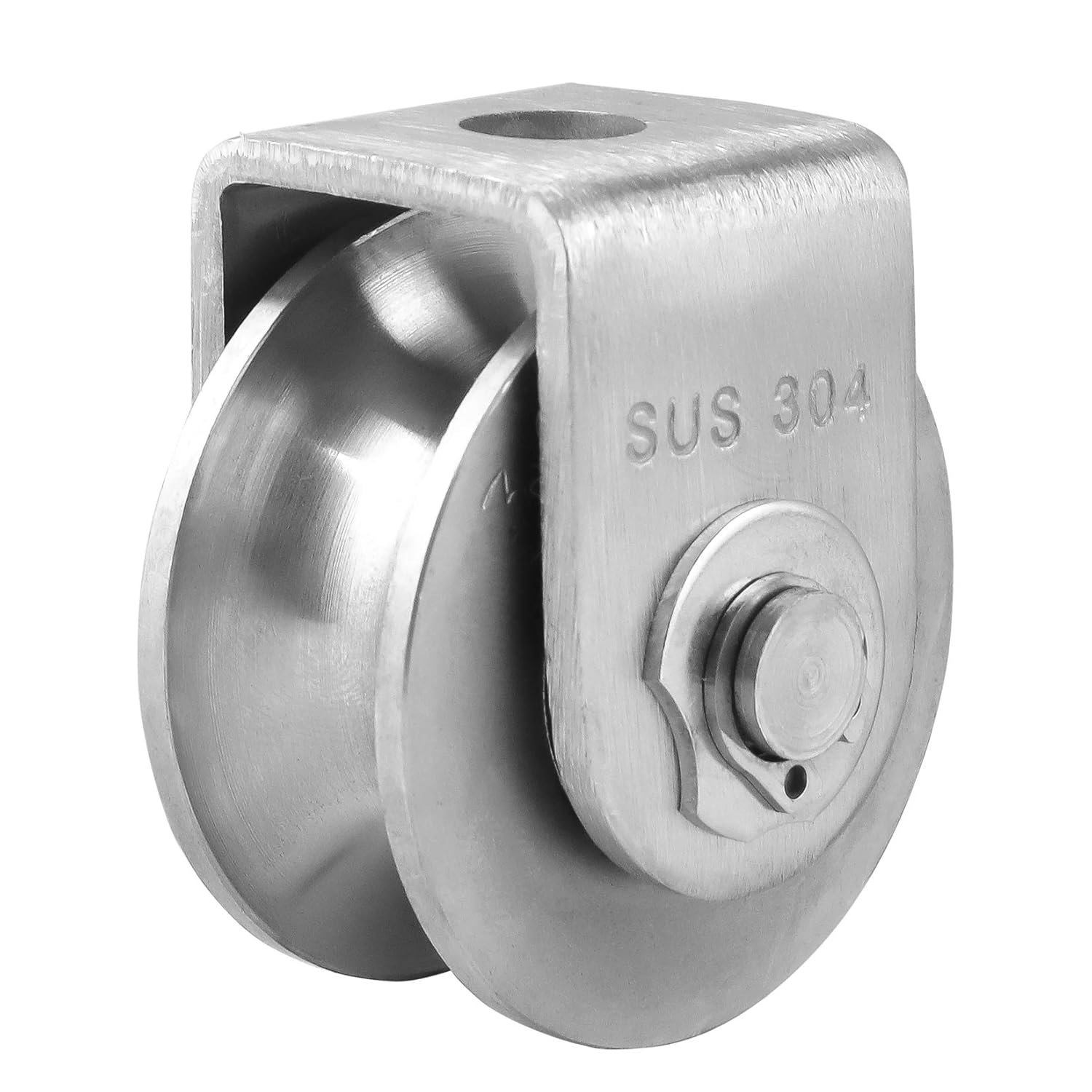

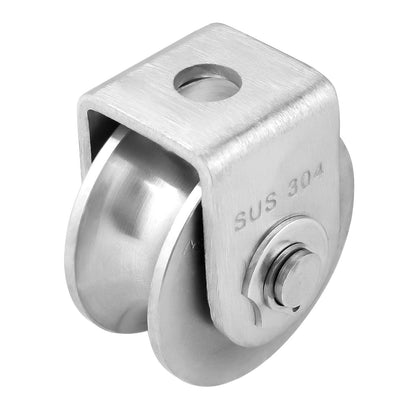

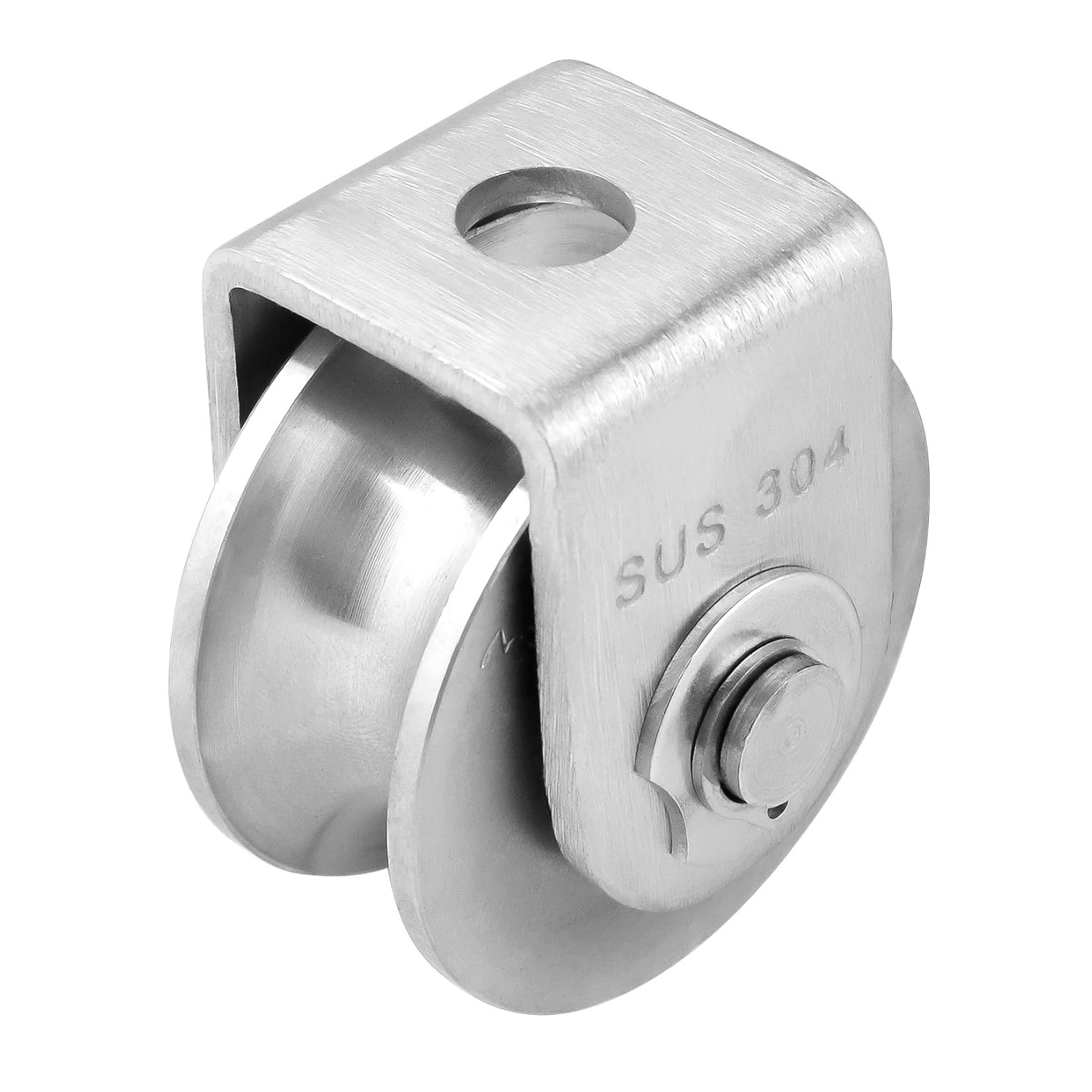

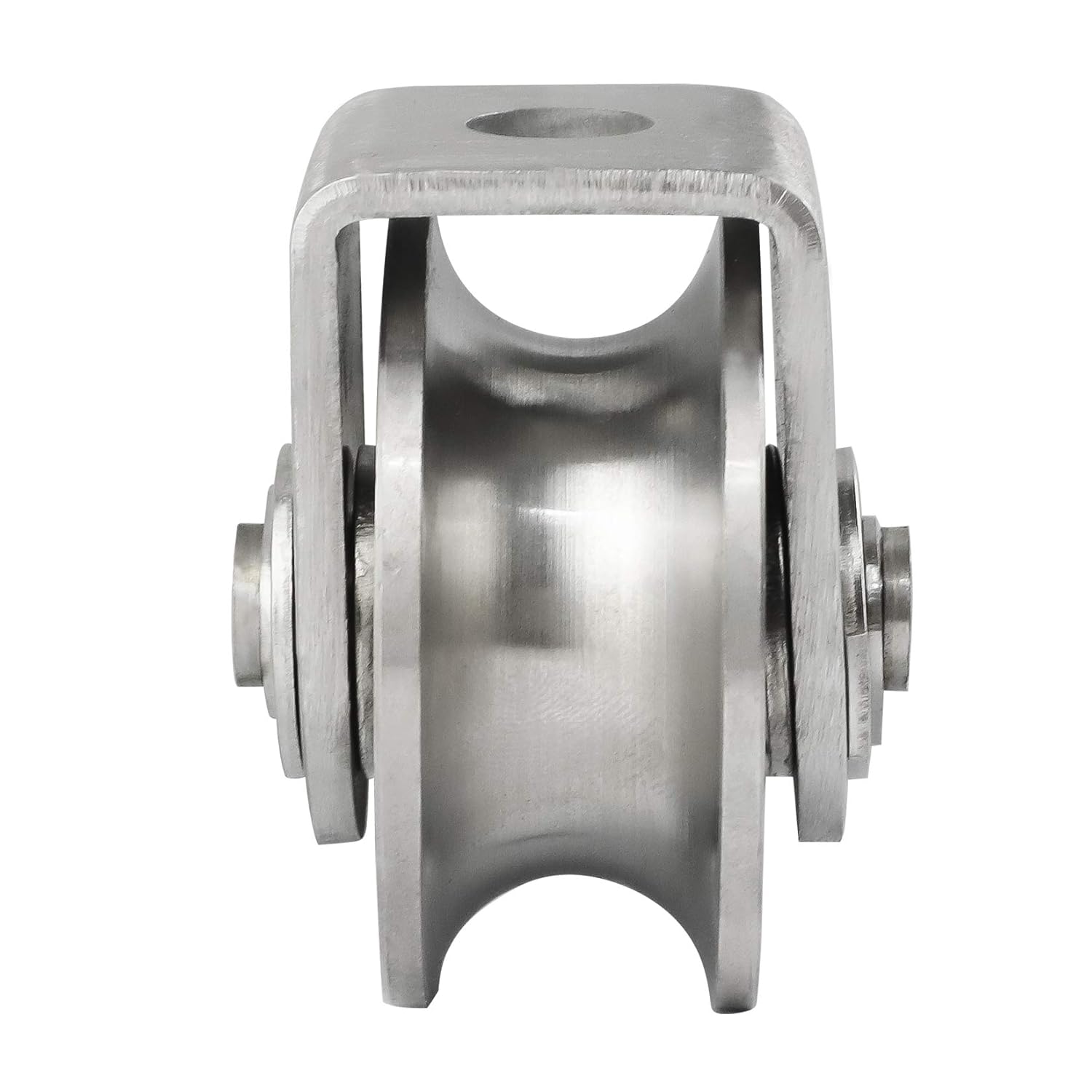

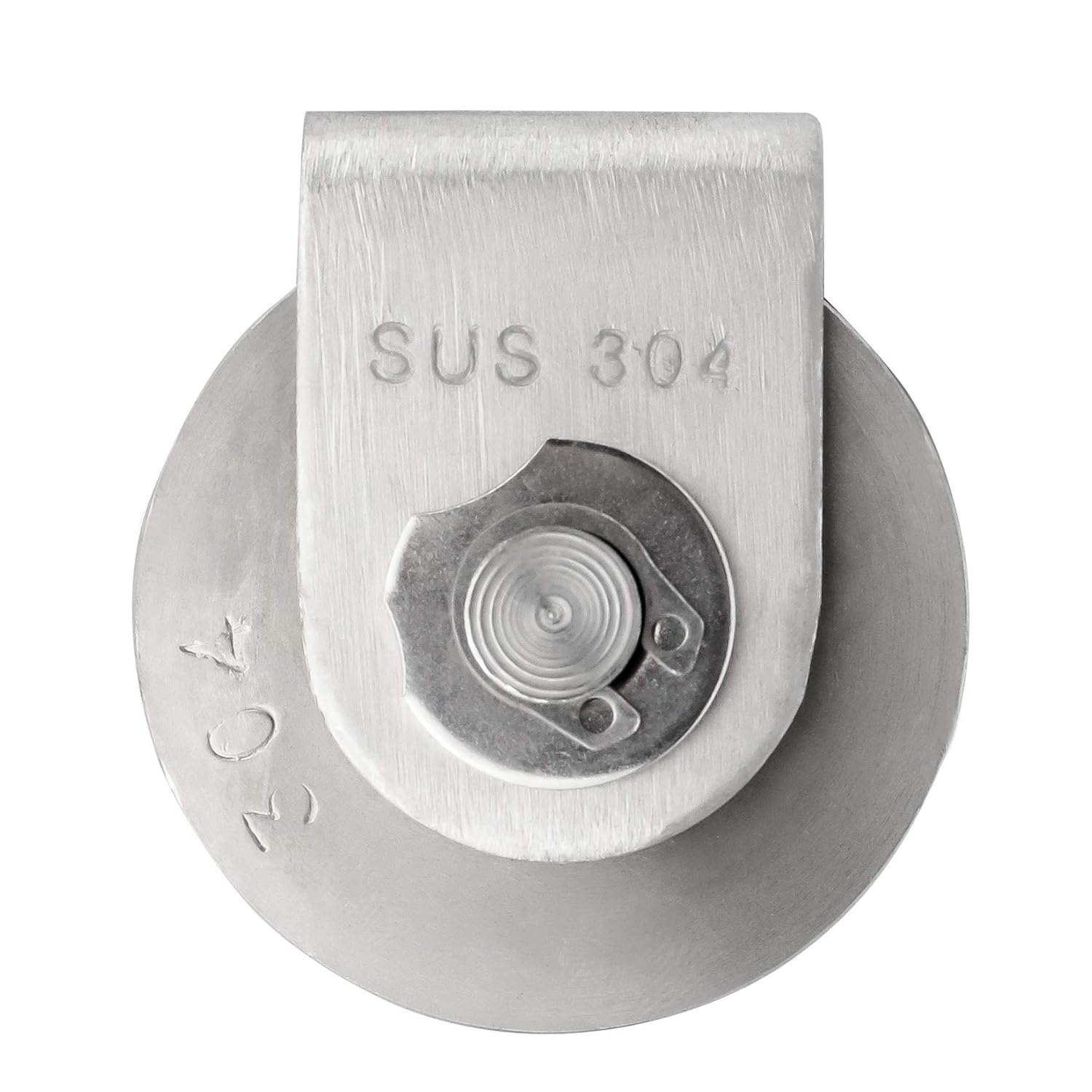

Pulley Block U Type Single Wheel Pulley Block Duplex Bearing 304 Stainless Steel Smooth Loading 880lb/400Kg for Material Handling and Moving

$189.34 USD

Sale Sold out

Specification

Product Name: U Type Pulley

Color: Silver

Material: 304 stainless steel

Installation height: 54mm(2.125in)

Wheel diameter: 48mm(1.889in)

Wheel thickness: 22mm(0.866in)

Groove width: 16 mm(0.629in)

Groove depth: 7 mm(0.27in)

Product weight: 280g(0.617lb)

Load: 300 kg (660 Ib)

Note: The picture on the left has a specific size mark,Manual measurement of dimensions may have a deviation of 1-2mm

Application

Generally used as a rail wheel Grooved Wheel

Package included

1pcs x U-Type Pulley

Product Features

There are two carbon steel ball bearings inside the pulley, which can reduce the friction of the wheel. The pulley turns more flexibly and has no noise.
Stainless steel manufacturing, rust - proof, corrosion - resistant, outdoor use can also prevent pulley corrosion.
Compared with other pulleys, pulley wheel support plate is thicker, the wheels are stronger and the bearing capacity is stronger.
Pulleys are removable for easy installation. A single small pulley can carry 660lb/300kg
The clearance between the wheels and the frame is only about 12mm, so the rope with too large diameter cannot be passed. Generally used as a rail wheel Grooved Wheel
