RC-33 NC Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch White 10 Pair
RC-33 NC Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch White 10 Pair
Magnetic Door Switch ,NORMALLY CLOSED

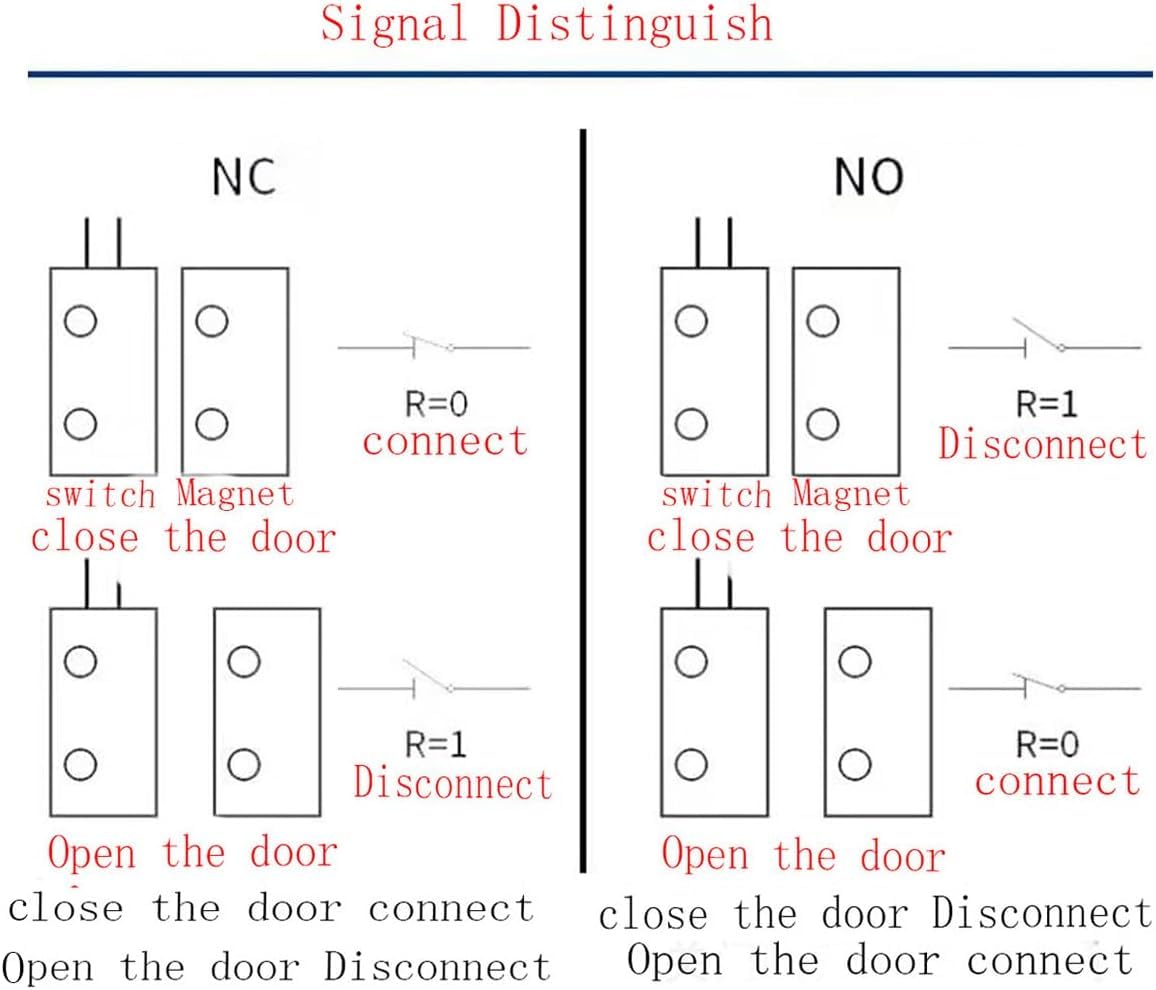

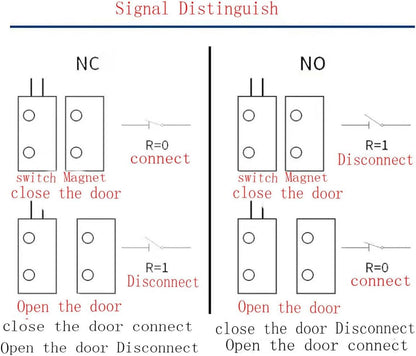

When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
WIDE APPLICAIONS
Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
PLEASE NOTE
A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp.
Specifications:
Model: RC-33
Contact Type: NC(Normally Closed)
Max. Sensor Sensitivity: 10mm¡À5mm
Max. Current: 120mA
Max. Voltage: 100V
Working Voltage: DC0-24V
Max. Contact Power: 10W

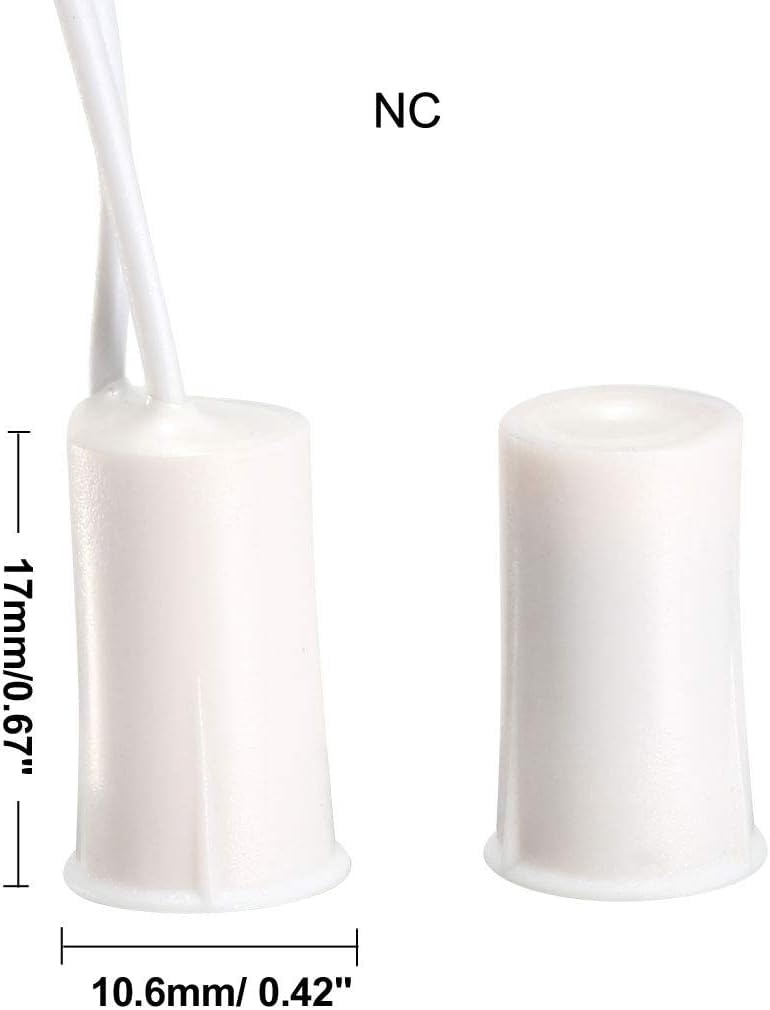

Size(Approx.): 16.7 x 10.7mm / 0.66 x 0.42inch (H*D)
Cable Length(Each): 30cm / 11.8inch
Housing Material: ABS
Wire Type: 1007#/24#300mmUL
Package Content:

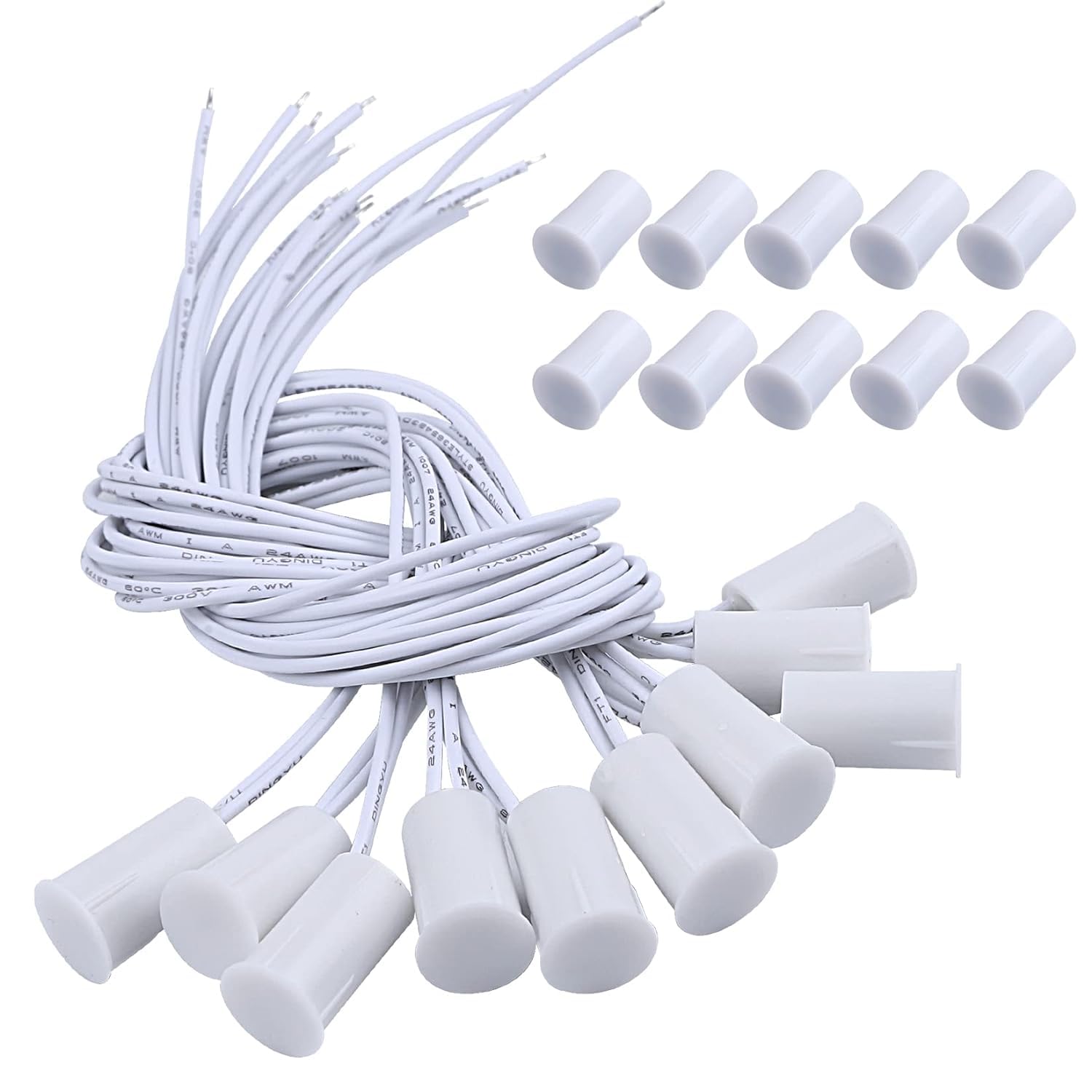

10 x Magnetic Door Switch
Product Overview
- Operation Mode: NC
- Current Rating: 0.5 Amps
- Operating Voltage: 110 Volts
- Contact Type: Normally Closed
- Connector Type: Dry Contact
- Brand: BNYZWOT
- Terminal: Screw
- Item dimensions L x W x H: 0.67 x 0.42 x 0.4 inches
- Circuit Type: 1-way
- Mounting Type: Door Mount
Product Features
- Product Name: Magnetic Door Switch Model: RC-33
- Actuation Distance: 15-25mm ; Max. Current: 0.5A; Max. Contact Power: 10W ; Max. Working Voltage: 110V
- Material: ABS (Housing) Wire Type: 1007UL#24AWG,Color: White, Net Weight: 36g
- Each Size(Approx): 17 x 10.6mm / 0.67 x 0.42-inch (H*D) Cable Length(Each): 25cm / 9.8-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG
- Package Content: 10 x Magnetic Door Switch
