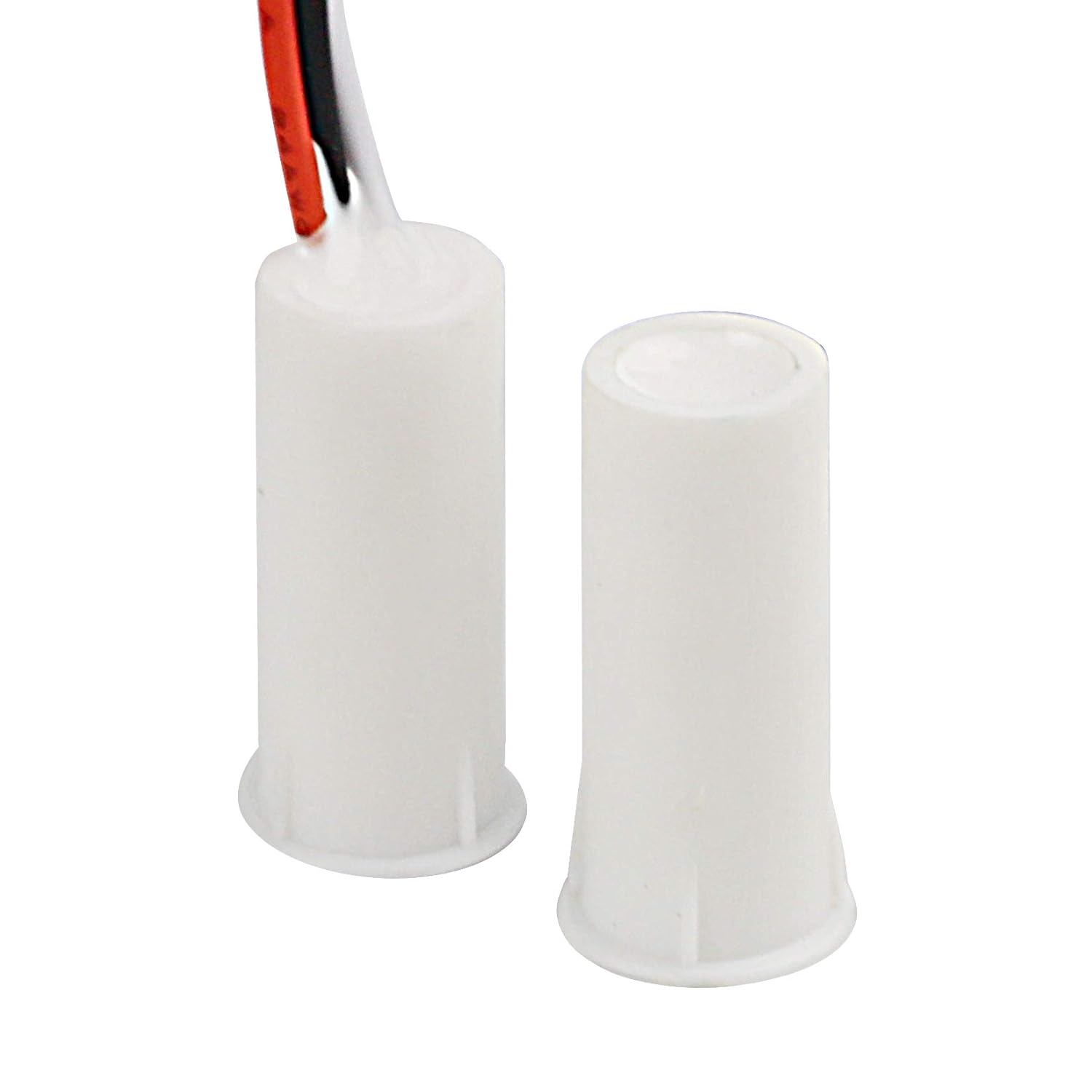

RC-35 NC & NO Wired Magnetic Door Window Contact Sensor Switch Contact Sensor Alarm Magnetic Reed Switch White - (5 Sets)
RC-35 NC & NO Wired Magnetic Door Window Contact Sensor Switch Contact Sensor Alarm Magnetic Reed Switch White - (5 Sets)
Feature:
Widely Used - This Recessed Door Contact Sensor works with any access control or burglar alarm system available.
Note - the Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
Specification
Material: ABS
Model : RC-35
Rated power: 10W
Rated current: 500(mA)
Rated voltage: (VDC) 100
Mounting Type: Recessed
Anti-fire ABS shield Connecting mode: NC/NO
Operating distance: more than 15mm, less than 25mm

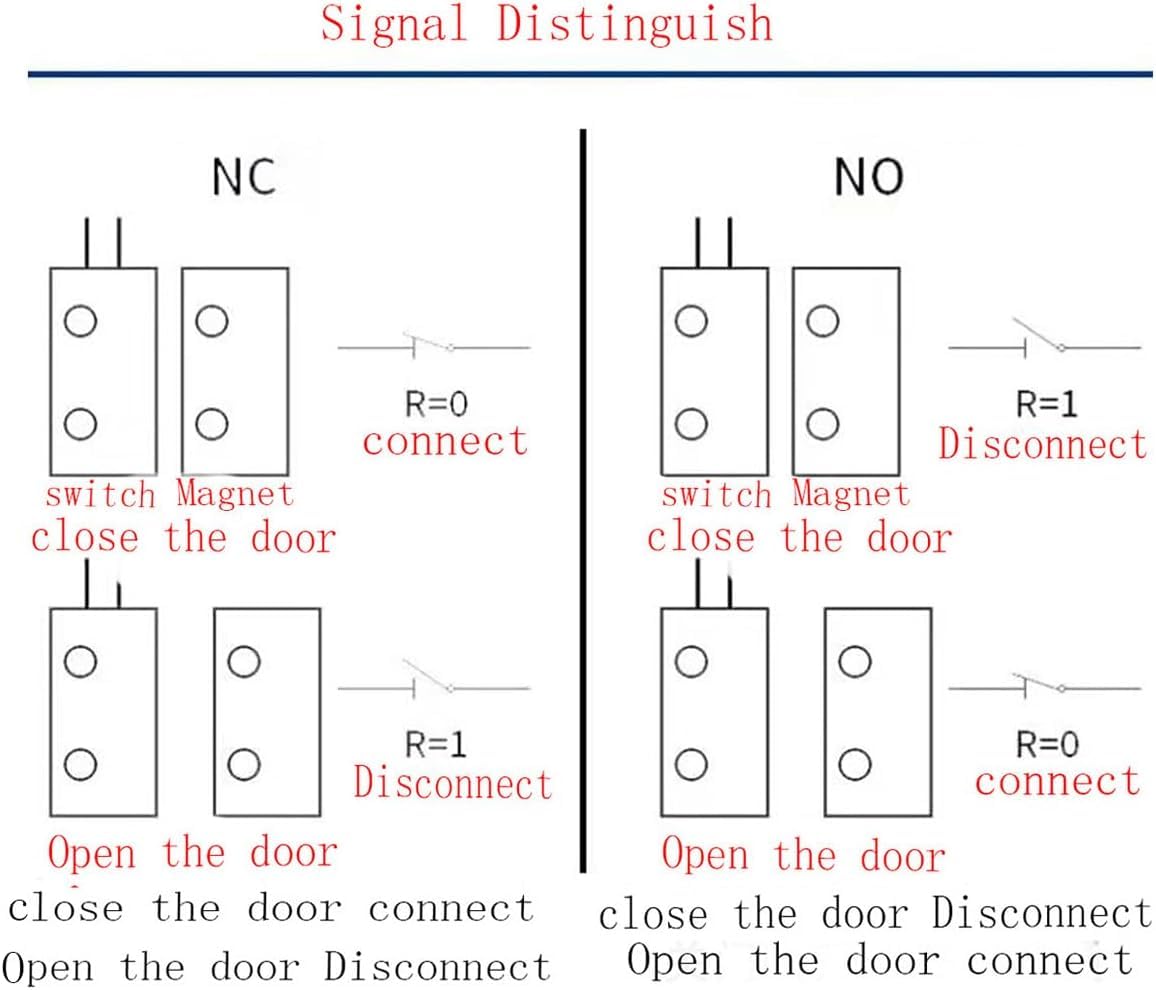

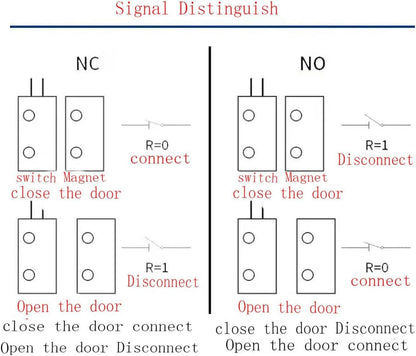

Switch Type: NO(normal open type), NO means Normally Open: when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive ( light ooff )

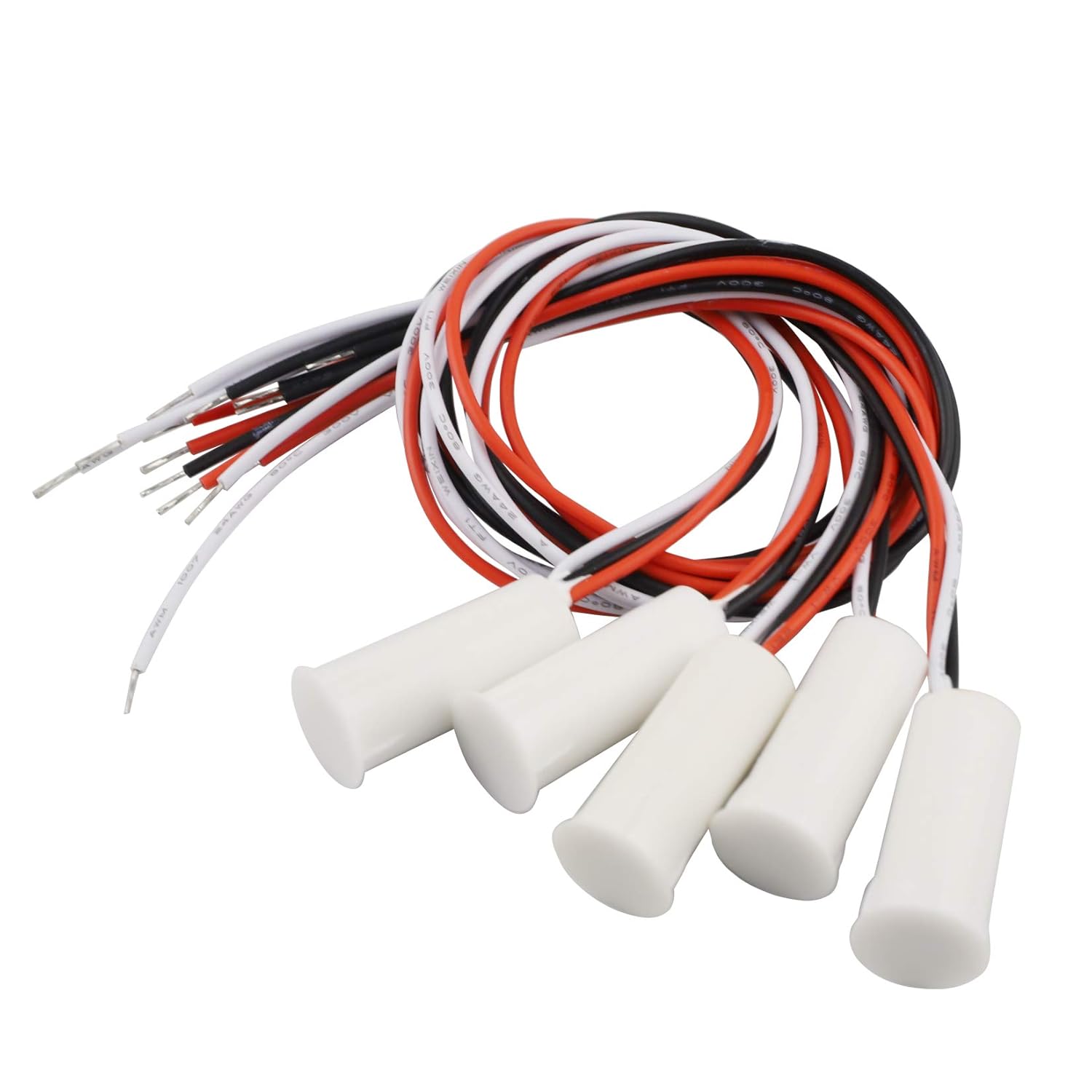

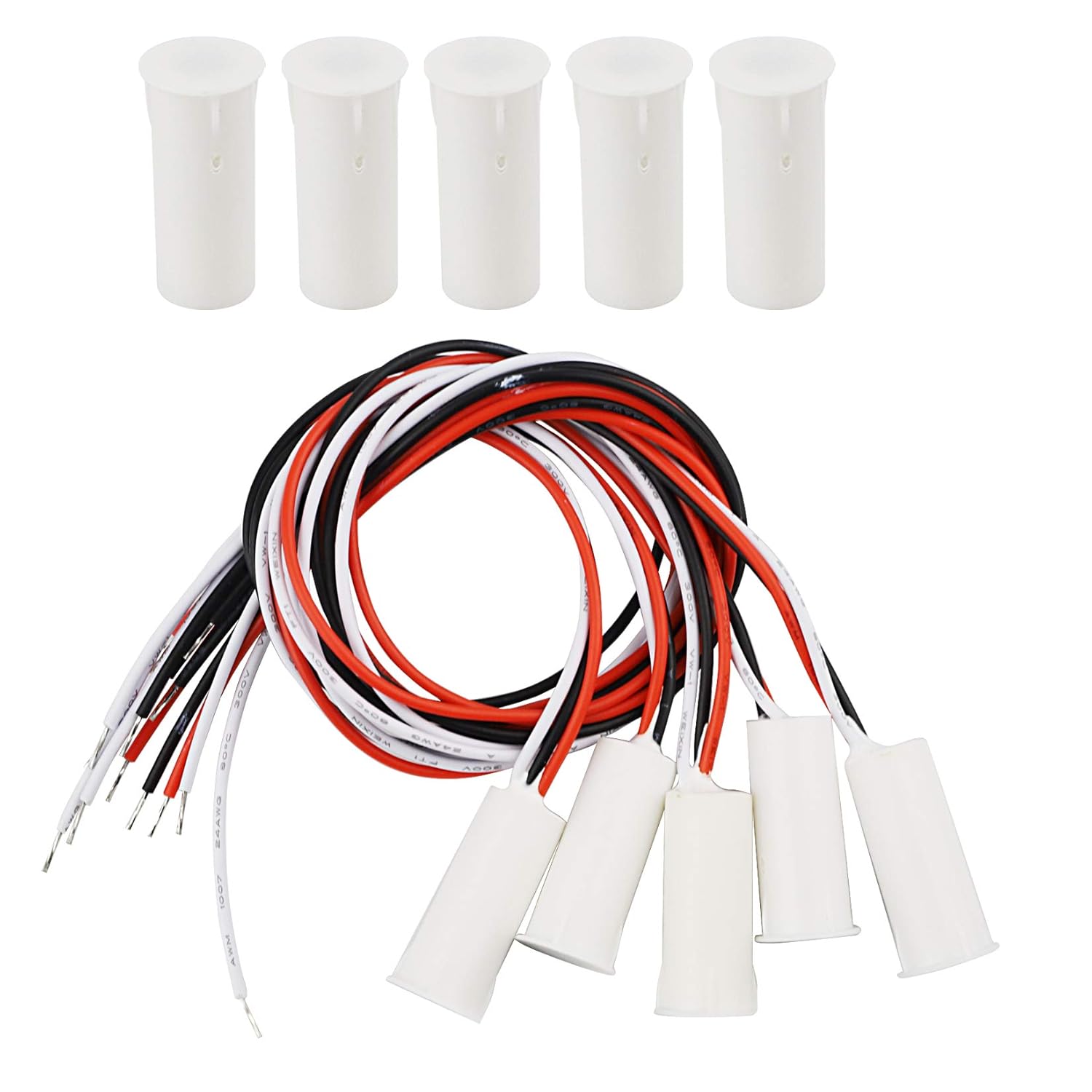

Package Includes: 5 Sets x RC-35 Magnetic Door Window Contact Sensor
Warm Tip:
Due to manual measurement, there may be a slight error in size.
【Hassle-Free Warranty】: BNYZWOT guarantee high quality and good service. Here with our 90-day money back risk-free purchase guarantee, order now! If you are not satisfied in any way, Refund or Replacement for any quality problem.
Product Overview
- Operation Mode: NC - NO
- Current Rating: 0.5 Amps
- Operating Voltage: 100 Volts
- Contact Type: Normally Open
- Connector Type: Dry Contact
- Brand: BNYZWOT
- Terminal: Screw
- Circuit Type: 2-way
- Mounting Type: Surface Mount
- Actuator Type: Plunger
Product Features
- 【Product Name】:RC-33 NC/NO Magnetic Door Swith
- 【Specification】: Rated Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current), Rated Power: 10W(Maximum Switch Power); Contact Type: NC/NO/COM,Trigger Range: 15-25mm.

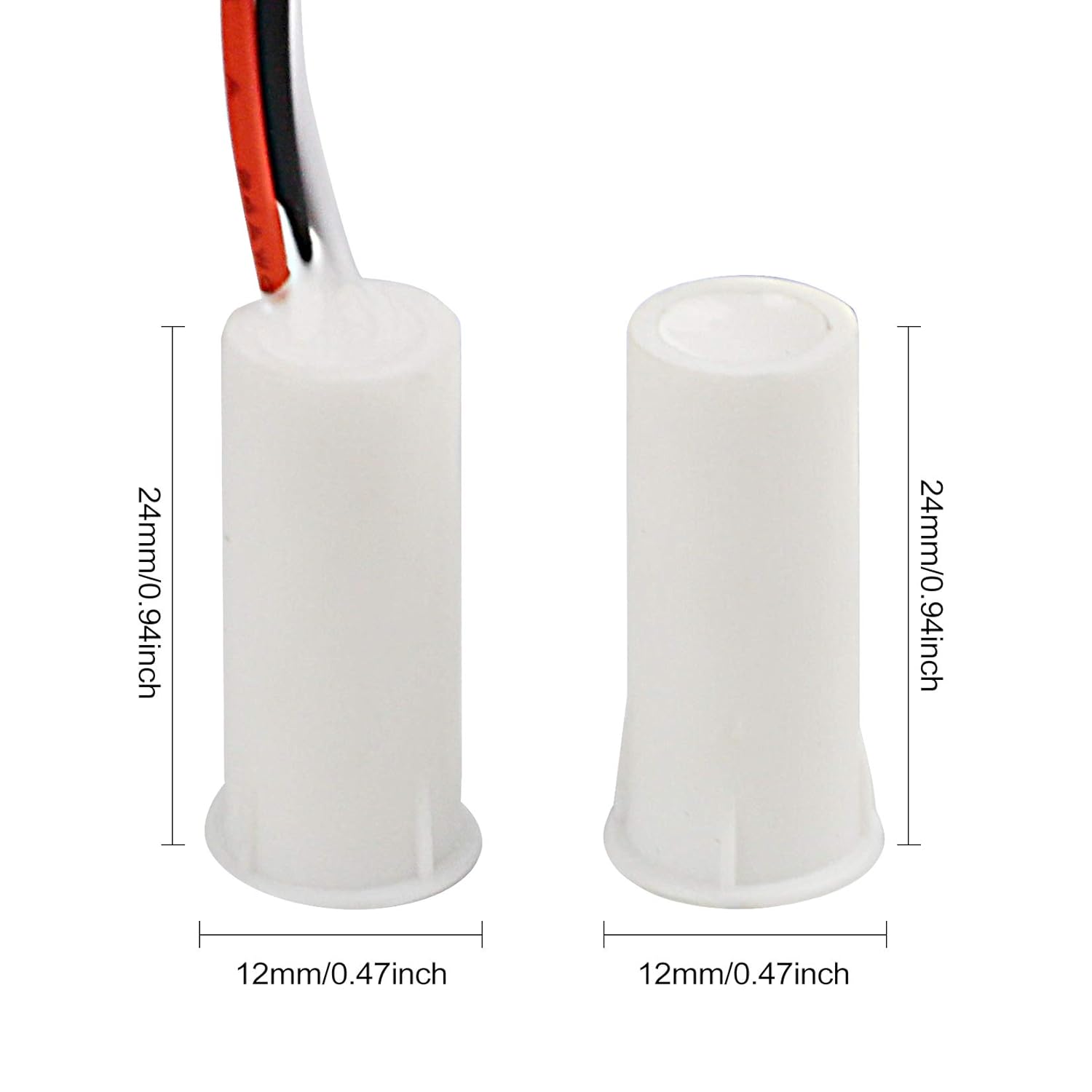

- 【Normally Open Normally Closed】: Use Normally Open or Normally Closed freely, Cable definition: Red for NC, Black for NO, White for common . Cable Length : 25cm/9.8", Overall Size: 16.7 x 10.7 mm / 0.66" x 0.42" (H*D).
- 【Application】: Magnetic door contact reed switch great for door alarm sensor, alarm, LED Switch, Relay, GPS low voltage devices...etc., Effective for Theft Deterrence. Yes ideal wooden door or window use.
- 【Package】: 5 Sets x Magnetic door contact reed switch, Here with our 90-day money back risk-free purchase guarantee,› See more product details
