RC-36 NC+NO Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch Brown - (5 Sets)

RC-36 NC+NO Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch Brown - (5 Sets)

Regular price $160.20 USD
Regular price Sale price $160.20 USD
Sale Sold out

Features:
1. The reed switch is an electrical switch operated by an applied magnetic field.
2. Designed for use with alarm systems. Great for use in family and factory window, door. etc.

Specification:
1. Color: Brown
2. Model: RC-36
3. Max. Current: 0.5A
4. Contact Type: NC+NO
5. Material: ABS (Housing)
6. Max. Contact Power: 10W
7. Product Name: Magnetic Door Switch
8. Working Voltage: DC100V Max.Actuation Distance: 10mm

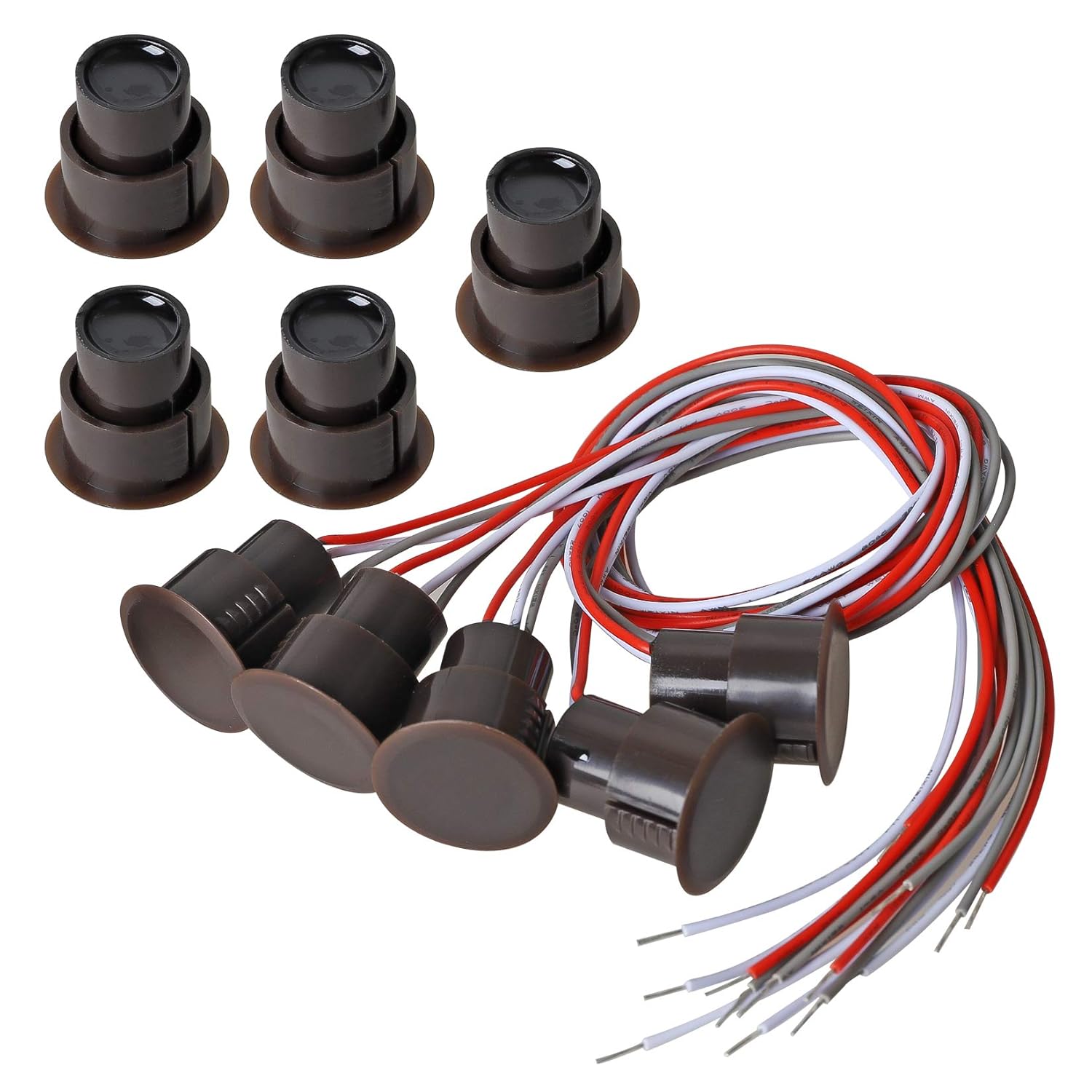

Package Content: 5 Sets x Magnetic Door Switches with cable

Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!

Product Overview

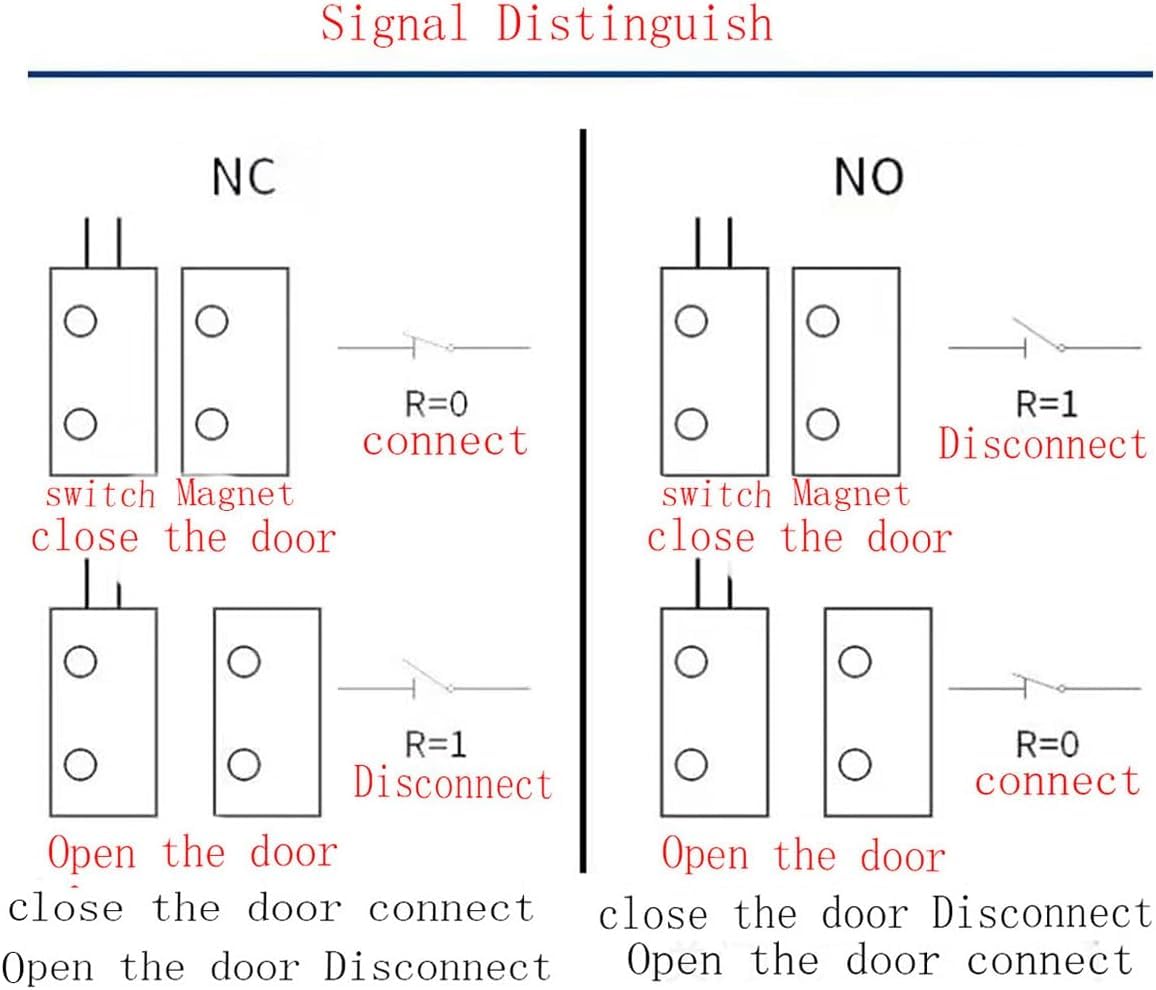

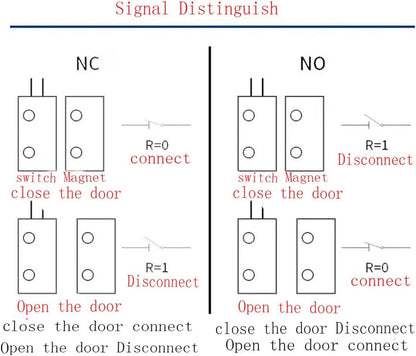

  • Operation Mode: NC+NO
  • Current Rating: 0.5 Amps
  • Operating Voltage: 100 Volts
  • Contact Type: Normally Open
  • Connector Type: Molex
  • Brand: BNYZWOT
  • Terminal: Screw
  • Mounting Type: Flush Mount
  • Actuator Type: Reed Switch
  • Contact Material: Nickel

Product Features

  • Mounting Type: Recessed; Model: RC-36; Package Content: 5 x Magnetic Reed Switches
  • Designed for use with alarm systems. Widely used in security window door cabinet contact.
  • Contact Capacity: 0.5A(Maximum Switch Current); Voltage: DC 100V; Rated Power: 10W; Actuation Distance: 15-20mm

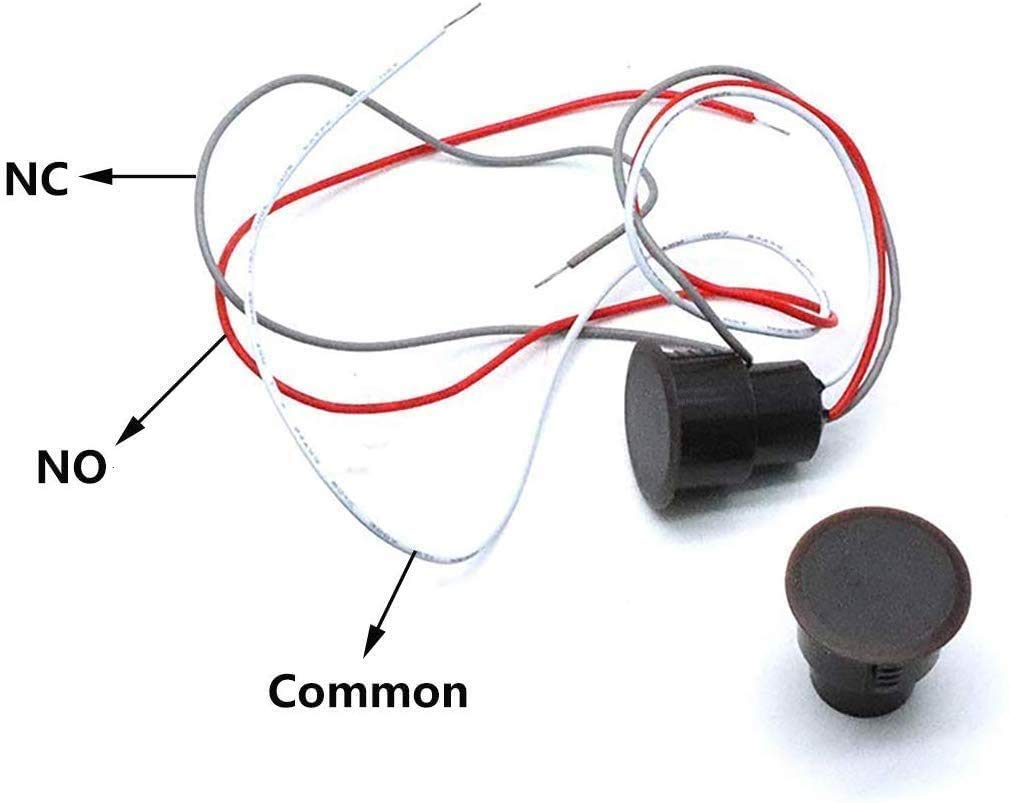

  • Nc&No Combined: Use Normally Open or Normally Closed freely. Cable definition: White for common; Red for NO; Gray for NC.
  • Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
